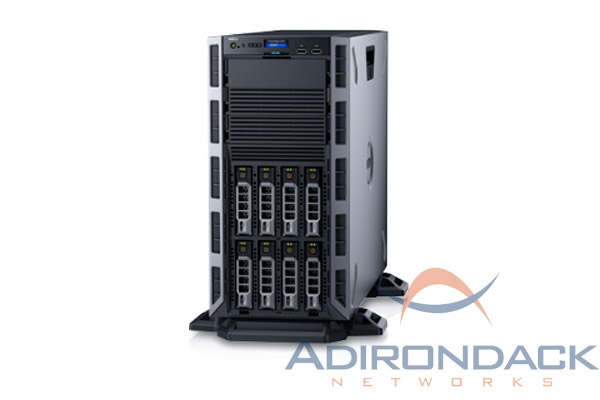

Dell PowerEdge T330 Server

Drive SMB and remote office/branch office applications faster and grow your data with a powerful and expandable 1-socket tower server.
Manufacturer Dell
Part Number(s): PowerEdge-T330

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.

About the Dell PowerEdge T330 Server

Processor

  • 1 processor from the following product families
    • Intel® Xeon® processor E3-1200 v6 product family
    • Intel Pentium®
    • Intel Core i3®
    • Intel Celeron®

RAID Controllers

  • PERC S130, PERC H330, PERC H730, PERC H830

Memory

  • Architecture: Up to 2400MT/s DDR4 DIMMs
  • Memory Type: UDIMMs
  • Memory Module Sockets: 4
  • Maximum RAM: Up to 64GB

Power

  • 1 x 350W cabled PSU or up to 2 x 495W redundant PSUs

Supported Operating Systems

  • Microsoft® Windows Server® 2012
  • Microsoft Windows Server 2012 R2, x64
  • Microsoft® Windows Server® 2016
  • Red Hat® Enterprise Linux®
  • VMware vSphere® ESXi®
  • SUSE® Linux Enterprise Server®

Chipset

  • Intel C236

Chassis

  • Tower server (5u when racked)

Network Controller

  • Broadcom® BCM5720

Storage

  • 2.5” SATA 7.2K
  • 2.5” SATA SSD's
  • 2.5” nearline SAS 7.2K
  • 2.5” SAS 10K HDDs
  • .5” SAS 15K HDDs
  • 3.5” Enterprise SATA 7.2K HDDs
  • .5” nearline SAS 7.2K HDDs

Slots

  • 4 Slots
    • 1 x8 PCIe 3.0 (x16 connector)
    • 1 x4 PCIe 3.0 (x8 connector)
    • 1 x4 PCIe 3.0 (x8 connector)
    • 1 x1 PCIe 3.0 (x1 connector)

Management

  • Systems Management
    • IPMI 2.0 compliant
    • Dell OpenManage Essentials
    • Dell OpenManage Mobile
    • Dell OpenManage Power Center
  • Dell OpenManage Integrations
    • Dell OpenManage Integration Suite for Microsoft System Center
    • Dell OpenManage Integration for VMware vCenter
  • Dell OpenManage Connections
    • HP Operations Manager
    • IBM Tivoli® Netcool®
    • CA Network and Systems Management
    • Dell OpenManage Plug-in for Oracle® Database Manager
  • Remote Management
    • iDRAC8 with Lifecycle Controller
    • iDRAC8 Express (default)
    • iDRAC8 Enterprise (upgrade)
    • 8GB vFlash media (upgrade)
    • 16GB vFlash media (upgrade)

Embedded Hypervisor (Optional)

  • Hypervisor Support
    • Microsoft Windows Server with Hyper-V®
    • VMware® vSphere® ESXi®

Drive Bays

  • 8 x 3.5" bays (also supports 2.5” HDD in 3.5” hybrid drive carrier)

Communications

  • 2 X 1GbE LOM

Device Access

  • 8 total USB
    • Rear USB: 2 x USB3.0 + 4 x USB 2.0
    • Front USB: 1 x USB 2.0 + 1 x USB 3.0

Rack Support

  • ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.

Dimensions

  • Height
    • Chassis base height - 430.3 mm/17.04 in
    • With foot - 443.3 mm/17.45 in
    • With wheel - 471.3 mm/18.55 in
  • Width
    • Chassis base width - 218 mm/8.58 in
    • With foot - 304.5 mm/11.98 in
  • Depth
    • Front to rear wall (w/o bezel) - 542.2 mm/21.33 in
    • Front to PSU handle (w/o bezel) - 578.42 mm/22.77 in
    • Front to rear wall (with bezel) - 558.6 mm/21.99 in
    • Front to PSU handle (with bezel) - 594.82 mm/23.41 in
