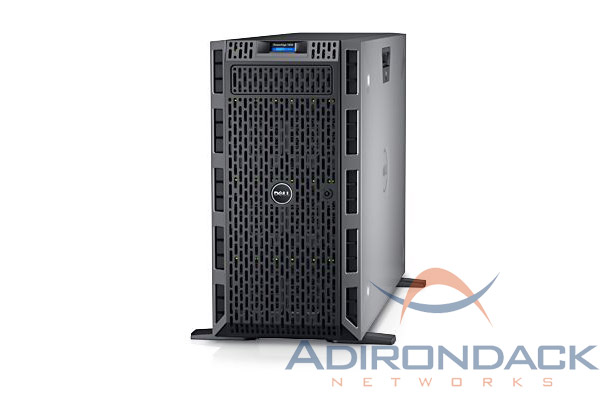

Dell PowerEdge T630 Server

Drive a wide range of demanding workloads with a flexible server offering peak 2-socket performance and huge internal storage capacity.
Manufacturer Dell
Part Number(s): PowerEdge-T630

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.

About the Dell PowerEdge T630 Server

Processor

  • Intel® Xeon® processor E5-2600 v4 product family

RAID Controllers

  • Internal
    • PERC S130
    • PERC H330
    • PERC H730
    • PERC H730P
  • External
    • PERC H830

Memory

  • Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

Power

  • Titanium efficiency 750W AC power supply
  • Gold efficiency 1100W DC power supply
  • Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply

Supported Operating Systems

  • Microsoft® Windows Server® 2008 R2
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Microsoft® Windows Server® 2016
  • Novell® SUSE® Linux Enterprise Server
  • Red Hat® Enterprise Linux
  • VMware® ESX®

Chipset

  • Intel C610 series chipset

Chassis

  • Form Factor
    • 5U
  • Height
    • Without feet - 434.5 mm (17.1")
    • With feet - 443.5 mm (17.5")
  • Width
    • 48.2cm (18.98”)
  • Depth
    • 75.09cm (29.56”)

Network Controller

  • 2 x 1Gb

Storage

  • SAS, SATA, Near-line SAS, SSD, PCIe SSD
  • Up to 4 optional Express Flash PCIe SSDs
  • Up to 144TB via 18 x 8TB 3.5” HDDs

Slots

  • Slot 1: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
  • Slot 2: Full Length, Full Height, PCH - PCIe Gen2 x4 (x8 connector)
  • Slot 3: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
  • Slot 4: Half Length, Full Height, CPU2 - PCIe Gen3 x8 (x8 connector)
  • Slot 5: Full Length, Full Height, CPU2 - PCIe Gen2 (DMI) x4 (x8 connector)
  • Slot 6: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
  • Slot 7: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
  • Slot 8: Half Length, Full Height, CPU1 - PCIe Gen3 x8 (x8 connector)

Management

  • Dell OpenManage portfolio of systems management solutions, including:
    • OpenManage Essentials console
    • iDRAC8 with Lifecycle Controller

Embedded Hypervisor (Optional)

  • Hypervisor Support
    • Citrix® XenServer®
    • Microsoft® Windows Server® 2008, with Hyper-V®
    • VMware® ESXi

Drive Bays

  • Internal hard drive bay and hot-plug backplane:
    • Up to 8 x 3.5” SAS, SATA, Near-Line SAS,SSD, PCIe SSD drives with optional flex bay
    • Up to 18 x 3.5” SAS, SATA, Near-Line SAS,SSD drives without optional flex bay
    • Up to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay
    • Up to 32 x 2.5” SAS, SATA, Near-Line SAS,SSD drives with optional flex bay

Communications

  • Broadcom® 5719 quad-port 1Gb NIC
  • Broadcom 5720 dual-port 1Gb NIC
  • Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
  • Broadcom 57810 dual-port 10Gb Base-T network adapter
  • Intel® Ethernet I350 dual-port 1Gb server adapter
  • Intel Ethernet I350 quad-port 1Gb server adapter
  • Intel Ethernet X540 dual-port 10GBASE-T server adapter
  • Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
  • Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
  • Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
  • Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
  • Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
  • Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
  • Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
  • QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
  • QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
  • Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
  • Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Graphics Card

  • Video Type: Integrated Matrox® G200 with iDRAC8
  • Video Memory: 16 MB shared with iDRAC8 application memory

Availability

  • ECC memory
  • Hot-plug hard drives
  • Hot-plug redundant cooling
  • Hot-plug redundant power
  • iDRAC8
  • Internal Dual SD Module
  • Single Device Data Correction (SDDC)
  • Spare Rank
  • Tool-less chassis
  • Support for high availability clustering and virtualization
  • Proactive systems management alerts
  • iDRAC8 with Lifecycle Controller
