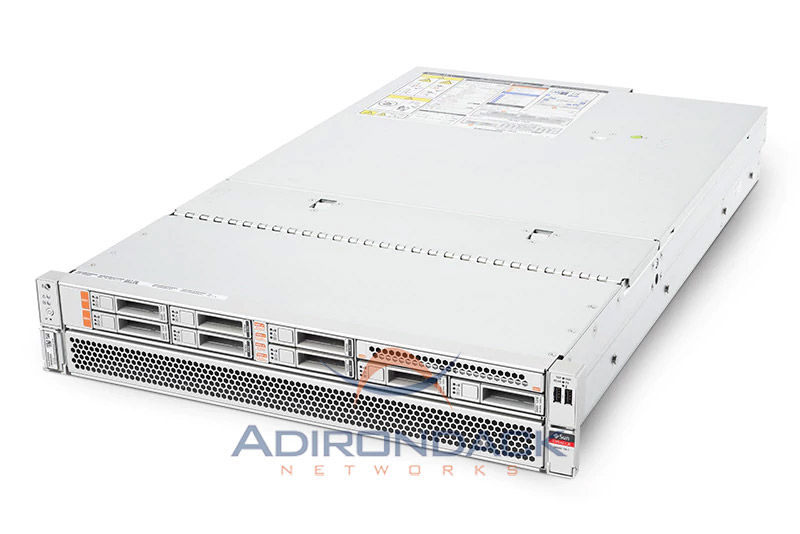

Oracle SPARC T8-1 Server

Oracle’s SPARC T8-1 server is a single-processor system that enables organizations to respond to IT demands with extreme security and performance at a lower cost compared to alternatives. It is ideal for a wide range of enterprise-class workloads, including databases, applications, Java, and middleware, especially in a cloud environment. This system is based on the SPARC M8 processor, using the revolutionary Software in Silicon technology from Oracle.
Manufacturer Oracle Sun
Part Number(s): Oracle T8-1

IN STOCK > VIEW INVENTORY


Adirondack Networks offers complete configurations as well as individual parts and upgrades for this system. Contact us for a customized quote.

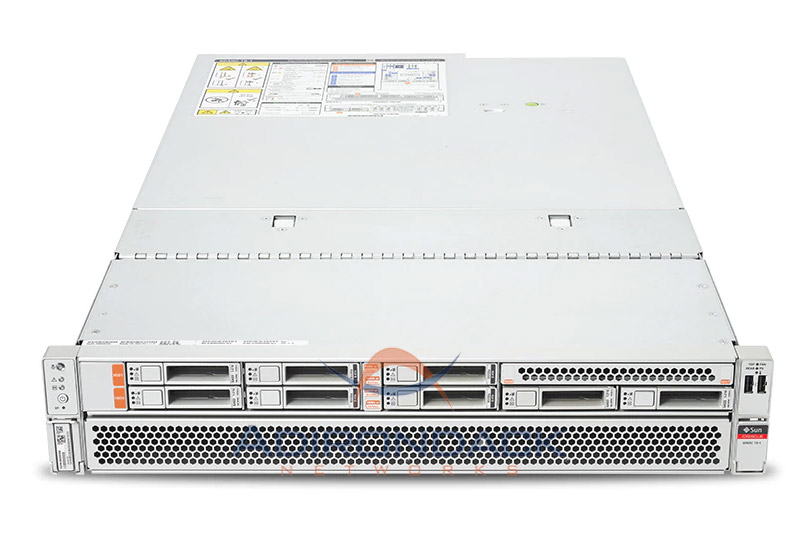

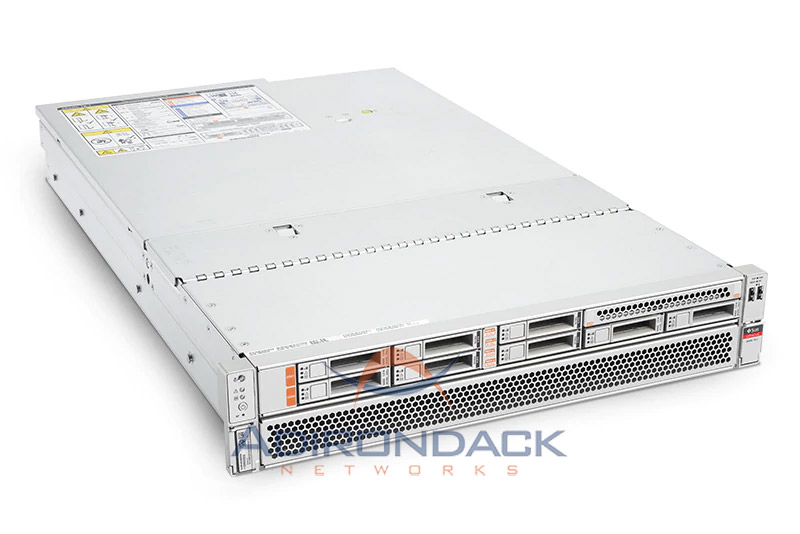

SPARC-T8-1-600px-a SPARC-T8-1-600px-b

SPARC-T8-1 Component List

Untitled Document
Batteries
Option # Manufacturing
Part #
Description
n/a 371-2210  3V Lithium Coin Cell Battery
Cables
Option # Manufacturing
Part #
Description
7102869 7039990  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 10M
7102870 7039999  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 20M
7102871 7040001  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 50M
7105148 CBL-SFP-2M  SFP+ Passive Copper Cable, 2M [SKU]
7105199 7063849  InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M
7105206 7063852  InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M
7114369 7308821  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M
7114370 7308822  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M
7114371 7308823  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M
7118363 7348892  QSFP28 to 4x SFP28 Copper Splitter Cable, 1M
7118364 7348895  QSFP28 to 4x SFP28 Copper Splitter Cable, 2M
7118365 7348898  QSFP28 to 4x SFP28 Copper Splitter Cable, 30AWG, 3M
7118366 7348901  QSFP28 to 4x SFP28 Copper Splitter Cable, 5M
7118367 7348904  SFP28 Twinaxial Passive Copper Cable, 1M
7118368 7348907  SFP28 Twinaxial Passive Copper Cable, 2M
7118369 7348910  SFP28 Twinaxial Passive Copper Cable, 3M
7118370 7348913  SFP28 Twinaxial Passive Copper Cable, 5M
X2121A-1M-N 530-4444  10Gbps QSFP to QSFP Passive Copper Cable, 1m
X2121A-2M 530-4567  10Gbps QSFP to QSFP Passive Copper Cable, 2m
X2121A-3M-N 530-4445  10Gbps QSFP to QSFP passive Copper Cable, 3m
X2121A-5M-N 530-4446  10Gbps QSFP to QSFP Passive Copper Cable, 5m
X2125A-1M-N 530-4450  QSFP to 4× SFP+ Splitter Cable, 1m
X2125A-3M-N 530-4451  QSFP to 4× SFP+ Splitter Cable, 3m
X2125A-5M-N 530-4452  QSFP to 4× SFP+ Splitter Cable, 5m
X2127A-10M 530-4480  MPO to 4x LC Duplex Splitter Cable, 10m
X2127A-20M 530-4481  MPO to 4x LC Duplex Splitter Cable, 20m
X2127A-50M 530-4482  MPO to 4x LC Duplex Splitter Cable, 50m
X2130A-1M-N 530-4441  10Gbps SFP+ TwinX Cable, 1m
X2130A-3M-N 530-4442  10Gbps SFP+ TwinX Cable, 3m
X2130A-5M-N 530-4443  10Gbps SFP+ TwinX Cable, 5m
n/a 530-3623 Shielded RJ45 to RJ45 Cable, 4M
n/a 7089783  Two Cable Bundle, 8-Slot NVMe, PCI Express, 2xHD8i to 2x68P
  • n/a
  • 72-Pin SFF-8643 to 90° SFF-8087 Cable, 0 and 1 to B, 500mm
  • n/a
  • 72-Pin SFF-8643 to 90° SFF-8087 Cable, 2 and 3 to A, 465mm
n/a 7095863 SAS Cable Guide, 90°
n/a 7096303 SAS Cable Guide, 45°
n/a 7348720 2  Cable Kit [SKU]
  • 7014226
  • Interlock Cable, 125mm
  • 7064125
  • 8-Pin Dc Power Cable, 394mm
  • 7064127
  • 26-Pin Ribbon Data Cable, 280mm
  • 7095263
  • Dual Mini SAS-3 HD8i Cable Assembly
    • n/a
    • 76-Pin SFF-8643 to SFF-8087 to SFF-8087 597mm
    • n/a
    • 76-Pin SFF-8643 to SFF-8087 to 90° SFF-8087 807mm
Chassis
Option # Manufacturing
Part #
Description
n/a 7345763 Chassis Assembly
  • 7014226
  • Interlock Cable, 125mm
  • 7014216
  • Rear Disk Filler Panel
  • 7303490
  • Rear Cover Assembly
    • 150-4065
    • Interlock Switch Magnet
  • 7319628
  • Power Supply Blocking Filler Panel
Communication
Option # Manufacturing
Part #
Description
7104074 7092757  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
n/a 7046442  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
Disk Backplane
Option # Manufacturing
Part #
Description
n/a 7323223 8-Slot 2.5" Disk Cage Assembly
  • 7017231 3
  • Disk Backplane Right LED Indicator Module
    • 7023333
    • Right Indicator
  • 7064122 4 5
  • Left Indicator Ribbon Cable
  • 7064124 6 7
  • Right Indicator Ribbon Cable
  • 7077622
  • 8-Slot Disk Cage
  • 7096185
  • Left Indicator Assembly
    • 7096184
    • Left Indicator w/o Button or Lightpipe
  • 7097205
  • 8-Slot Backplane
  • 7323222
  • Fan Door Cover without Spacer 7300151
Disks
Option # Manufacturing
Part #
Description
7111108 7093037  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly with 1 bracket and 1 of the following disks:
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7363537  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 7363535
  • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
7115079 7330686  800GB SAS-3 Solid State Drive Assembly
  • 7330684
  • HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" SAS-3 Solid State Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7364348  800GB SAS-3 Solid State Disk Assembly
  • 7364132
  • Western Digital WUSTM3280ASS200 [HPCAC2DH4ORA800G] (800GB - 2.5" SAS-3 Solid State Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7118670 7350766  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly without Encryption (EAEU part - see note below)
  • 7350764
  • HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS-3 Disk Drive without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7363537  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 7363535
  • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
7118709 7350749  800GB SAS-3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
  • 7350742
  • HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS-3 Disk without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7364350  800GB SAS-3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
  • 7364134
  • Western Digital WUSTM3280ASS204 [HPSAC2DH4ORA800G] (800GB - 2.5" SAS-3 Solid State Disk without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7120558 7361493 8  6.4TB Gen2 NVMe Solid State Drive Assembly
  • 7361456
  • Intel SSDPE2KE064T8E [ICRPC2DD2ORA6.4T] (6.4TB Gen2 - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
  • 541-2123
  • Marlin 2.5" Bracket
7111103  7093015  600GB - 10000 RPM SAS-3 Disk Drive Assembly with 1 bracket and 1 of the following disks:
  • 7093013
  • Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS-3 Disk Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7115457  7340035 9  6.4TB NVMe Solid State Drive Assembly
  • 7335940
  • Intel SSDPE2KE064T7 [ICDPC2DD2ORA6.4T] (6.4TB - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
  • 541-2123
  • Marlin 2.5" Bracket
7118672  7352257  600GB - 10000 RPM SAS-3 Disk Drive Assembly without Encryption (EAEU part - see note below)
  • 7352258
  • HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS-3 Disk Drive without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
n/a 8200038   600GB 10000 RPM SAS-3 Disk Drive Assembly, FSB Certified
  • 8200040
  • Seagate ST1200MM0099 [ST0600IN9SUN600G] (Destroked 1.2TB 7363535) (FSB Certified)
    • 7363535
    • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
Ethernet
Option # Manufacturing
Part #
Description
7100477 7070195  Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7111181 7096675  Quad 10-Gigabit Base-T Ethernet
7114094 7305556  40GbE Long Wave QSFP+ Transceiver
7114134 7319817  Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+
7118016 7339763  Dual 10/25-Gigabit SFP28 Ethernet
7118019 7341433  25GbE Short Wave SFP28 Transceiver
7118021 7347691  25GbE Long Wave SFP28 Transceiver
X1109A-Z 7051223  Dual 10-Gigabit PCI Express Ethernet SFP+ LP
X2124A-N 7326504  10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
X2129A-N 530-4449  10Gb/Sec Short Wave SFP+ Transceiver
X5562A-Z 135-1205  10Gb/Sec Long Wave SFP+ Transceiver
Fan
Option # Manufacturing
Part #
Description
n/a 7326747 Clear Plastic Air Duct Assembly
n/a 7331870  Fan Module
  • 7331869
  • Dual Counter-rotating Fan, 80x80mm, 14000/12600 RPM
Fibre Channel
Option # Manufacturing
Part #
Description
7101674 7023303  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
7101676 7023325  Pair of 16Gbps Short Wave SFP+
  • 7023324
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101678 7023315  Pair of 10Gbps Short Wave SFP+
  • 7023316
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101684 7023036  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
7101686 7023059  Pair of 16Gbps Short Wave SFP+
  • 7023053
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
7115461 7335907 10  Dual 32Gbps Fibre Channel Host Adapter
  • 7335907a
  • Emulex Dual Port 32Gbps Fibre HBA
  • 7335907b
  • Pair of Emulex 32Gbps Short Wave SFP+ Transceivers
    • 7335907c
    • Emulex 32Gbps Short Wave SFP+ Transceiver
7115462 7335902 11  QLogic Dual Port 32Gbps Fibre HBA
  • 7335902a
  • QLogic Dual Port 32Gbps Fibre HBA
  • 7340777
  • Pair of QLogic 32Gbps Short Wave SFP+ Transceivers
    • 7340776
    • QLogic 32Gbps Short Wave SFP+ Transceiver
I/O
Option # Manufacturing
Part #
Description
n/a 7064634  8-Port PCI Express Switch
  • 7096186
  • PCI Express Switch w/o Bracket or Heatsink
Memory
Option # Manufacturing
Part #
Description
7114776 7345484  Memory Riser (YUBA_YMM)
  • 7094733
  • Protective Connector Cover
  • 7330186
  • Mounting Tray
  • 7345480
  • Memory Riser (fruid 7345480)
7118205 7325772  32GB DDR4-2400 Registered DIMM
7118206 7325773  64GB DDR4-2400 Load Reduced DIMM
7119479 7358667  16GB DDR4-2666 Registered DIMM, 1-Rank (runs at 2400MHz)
7118204  7325771  16GB DDR4-2400 Registered DIMM, 2-Rank
n/a 7074618  2GB Embedded USB
Power
Option # Manufacturing
Part #
Description
n/a 7319628 Power Supply Blocking Filler Panel
n/a 7333459  Type A266 800/1200 Watt AC Input Power Supply (India ISI)
n/a 7350780  Type A266 800/1200 Watt AC Input Power Supply (Taiwan BSMI RoHS)
n/a 8200116  Type A266 800/1200 Watt AC Input Power Supply (India BIS Label Update)
n/a 7358600   Type A266 800/1200 Watt AC Input Power Supply
Rack
Option # Manufacturing
Part #
Description
n/a 350-1719  1U/2U Snap-In Slide Rail Rackmount Kit
n/a 7042273  1U/2U Cable Management Arm (Snap-in)
Removable Media
Option # Manufacturing
Part #
Description
7111911 12 7093727 External USB DVD Assembly
  • 7093729
  • USB DVD w/o AC adapter, USB cable, power cable,V2
7093728 USB DVD AC Adapter & Cable Kit
  • 7075046
  • USB DVD Cable
  • 7093730
  • USB DVD Adapter w/o Power Cable
n/a 7096422 DVD Filler Panel
SCSI
Option # Manufacturing
Part #
Description
7110119 7085208  8-Port 12Gbps SAS-3 HBA (External)
7120562 7361454  6.4TB Flash Accelerator F640B v2 NVMe Card
7115455  7335943 13  6.4TB Flash Accelerator F640 NVMe Card
System Board
Option # Manufacturing
Part #
Description
n/a 7351405  System Board Assembly
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
  • 7051520
  • Rear I/O Board
  • 7074618
  • 2GB Embedded USB
  • 7331682
  • System Board Tray
  • 7346957
  • 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
  • 7351402
  • System Board
    • 371-2210
    • 3V Lithium Coin Cell Battery
    • 525-2146
    • SSCC NVRAM
System Service Processor
Option # Manufacturing
Part #
Description
n/a 7343771  Service Processor Assembly
  • 7338746
  • Cover
  • 7343772
  • Service Processor (Fruid 7343772)

We can save you 50% or more
on your current maintenance contract costs!

For a Limited Time
 GET 3 MONTHS FREE!

REQUEST QUOTE or CALLBACK
Oracle SPARC Servers: Oracle SPARC T8-1 Server

About the Oracle SPARC T8-1 Server

  • Processor
  • Thirty-two core, 5.0 GHz SPARC M8 processor
  • Up to 256 threads per processor (up to 8 threads per core)
  • Eight Data Analytics Accelerator units per processor, each supporting four concurrent in-memory analytics engines with decompression
  • Thirty-two on-chip encryption instruction accelerators with direct nonprivileged support for 16 industry-standard cryptographic algorithms: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-3, SHA-384, and SHA-512 (one per core)
  • Thirty-two floating-point units and thirty-two Oracle Numbers units per processor (one per core)
  • One random number generator (one per processor)
  • Cache Per Processor
  • Level 1: 32 KB instruction and 16 KB data per core
  • Level 2: 256 KB L2 I$ per four cores, 128 KB L2 D$ per core
  • Level 3: 64 MB L3$ on chip
  • System Configurations
  • SPARC T8-1 servers are always configured with a single SPARC M8 processor; not expandable
  • Sixteen dual inline memory module (DIMM) slots per processor supporting half and fully populated memory configurations using 16, 32, or 64 GB DDR4 DIMMs
    • 1 TB maximum memory configuration with 64 GB DIMMs
    • System Architecture
    • SPARC V9 architecture, ECC protected
    • Inetrfaces
    • Network: Four 10 GbE (100 Mb/sec, 1 Gb/sec, 10 Gb/sec), full duplex only, auto-negotiating
    • Disks and internal storage: One SAS-3 controller providing hardware RAID 0, 1, and 1E/10 (ZFS file system provides higher levels of RAID)
    • Expansion bus: Six low-profile PCIe 3.0 (four x8 and two x16 or x8 wired) slots
    • Ports: Four external USB (two front USB 2.0 and two rear USB 3.0), one RJ45 serial management port, console 100 Mb/1 Gb network port, and VGA port
    • Internal Storage
    • Up to eight 600 GB or 1,200 GB 2.5-inch SAS-3 drives
    • Optional internal storage may be installed within the standard drive bays
    • 800 GB solid-state drives (SSDs), maximum of eight
    • 6.4 TB NVMe drives, maximum of four
        • Power Supplies
        • Two hot-swappable AC 1,200 W redundant (1 + 1) power supplies
        • Voltage 200 to 240 VAC, frequency 50/60 Hz
        • Maximum operating input current at 200 VAC: 7 A per cord
        • Maximum operating input power at 200 VAC: 1,300 W
        • Key Ras Features
    • Hot-plug disk drives
    • Redundant, hot-swappable power supplies and fans
    • Environmental monitoring
    • Extended ECC, error correction, and parity checking
    • DIMM sparing enabled with fully populated memory slots, increasing system reliability and uptime
    • Easy component replacement
    • Integrated disk controller with RAID 0, 1, and 1E/10
    • Fault Management Architecture and Predictive Self Healing (both are features of Oracle Solaris)
    • Operating System
    • Oracle recommends the latest version of Oracle Solaris 11.3 for enhanced performance and functionality, including features enabled by Software in Silicon technology.
    • Control domain: Oracle Solaris 11.3 SRU 24 or later
    • The following versions are supported within guest domains:
      •     ○Oracle Solaris 11.3 SRU 24 or later
        • Oracle Solaris 10 1/13*
          •     *Plus required patches
    • Virtualization
    • Built-in, no-cost Oracle VM Server for SPARC provides the flexibility and power for running multiple logical domains in a single server. Multiple Oracle Solaris Zones may be run within a single Oracle VM Server for SPARC logical domain.
    • Dimensions
    • Height: 87.6 mm (3.45 in.); 2U
    • Width: 445.0 mm (17.5 in.)
    • Depth: 737 mm (29 in.)



Component List

BATTERIES
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 371-2210  3V Lithium Coin Cell Battery

CABLES
OPTION # MANUFACTURING
PART #
DESCRIPTION
7102869 7039990  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 10M
7102870 7039999  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 20M
7102871 7040001  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 50M
7105148 CBL-SFP-2M  SFP+ Passive Copper Cable, 2M [SKU]
7105199 7063849  InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M
7105206 7063852  InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M
7114369 7308821  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M
7114370 7308822  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M
7114371 7308823  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M
7118363 7348892  QSFP28 to 4x SFP28 Copper Splitter Cable, 1M
7118364 7348895  QSFP28 to 4x SFP28 Copper Splitter Cable, 2M
7118365 7348898  QSFP28 to 4x SFP28 Copper Splitter Cable, 30AWG, 3M
7118366 7348901  QSFP28 to 4x SFP28 Copper Splitter Cable, 5M
7118367 7348904  SFP28 Twinaxial Passive Copper Cable, 1M
7118368 7348907  SFP28 Twinaxial Passive Copper Cable, 2M
7118369 7348910  SFP28 Twinaxial Passive Copper Cable, 3M
7118370 7348913  SFP28 Twinaxial Passive Copper Cable, 5M
X2121A-1M-N 530-4444  10Gbps QSFP to QSFP Passive Copper Cable, 1m
X2121A-2M 530-4567  10Gbps QSFP to QSFP Passive Copper Cable, 2m
X2121A-3M-N 530-4445  10Gbps QSFP to QSFP passive Copper Cable, 3m
X2121A-5M-N 530-4446  10Gbps QSFP to QSFP Passive Copper Cable, 5m
X2125A-1M-N 530-4450  QSFP to 4× SFP+ Splitter Cable, 1m
X2125A-3M-N 530-4451  QSFP to 4× SFP+ Splitter Cable, 3m
X2125A-5M-N 530-4452  QSFP to 4× SFP+ Splitter Cable, 5m
X2127A-10M 530-4480  MPO to 4x LC Duplex Splitter Cable, 10m
X2127A-20M 530-4481  MPO to 4x LC Duplex Splitter Cable, 20m
X2127A-50M 530-4482  MPO to 4x LC Duplex Splitter Cable, 50m
X2130A-1M-N 530-4441  10Gbps SFP+ TwinX Cable, 1m
X2130A-3M-N 530-4442  10Gbps SFP+ TwinX Cable, 3m
X2130A-5M-N 530-4443  10Gbps SFP+ TwinX Cable, 5m
n/a 530-3623 Shielded RJ45 to RJ45 Cable, 4M
n/a 7089783  Two Cable Bundle, 8-Slot NVMe, PCI Express, 2xHD8i to 2x68P
  • n/a
  • 72-Pin SFF-8643 to 90° SFF-8087 Cable, 0 and 1 to B, 500mm
  • n/a
  • 72-Pin SFF-8643 to 90° SFF-8087 Cable, 2 and 3 to A, 465mm
n/a 7095863 SAS Cable Guide, 90°
n/a 7096303 SAS Cable Guide, 45°
n/a 7348720 2  Cable Kit [SKU]
  • 7014226
  • Interlock Cable, 125mm
  • 7064125
  • 8-Pin Dc Power Cable, 394mm
  • 7064127
  • 26-Pin Ribbon Data Cable, 280mm
  • 7095263
  • Dual Mini SAS-3 HD8i Cable Assembly
  • n/a
  • 76-Pin SFF-8643 to SFF-8087 to SFF-8087 597mm
  • n/a
  • 76-Pin SFF-8643 to SFF-8087 to 90° SFF-8087 807mm
CHASSIS
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7345763 Chassis Assembly
  • 7014226
  • Interlock Cable, 125mm
  • 7014216
  • Rear Disk Filler Panel
  • 7303490
  • Rear Cover Assembly
  • 150-4065
  • Interlock Switch Magnet
  • 7319628
  • Power Supply Blocking Filler Panel
COMMUNICATION
OPTION # MANUFACTURING
PART #
DESCRIPTION
7104074 7092757  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
n/a 7046442  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
DISK BACKPLANE
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7323223 8-Slot 2.5" Disk Cage Assembly
  • 7017231 3
  • Disk Backplane Right LED Indicator Module
  • 7023333
  • Right Indicator
  • 7064122 4 5
  • Left Indicator Ribbon Cable
  • 7064124 6 7
  • Right Indicator Ribbon Cable
  • 7077622
  • 8-Slot Disk Cage
  • 7096185
  • Left Indicator Assembly
  • 7096184
  • Left Indicator w/o Button or Lightpipe
  • 7097205
  • 8-Slot Backplane
  • 7323222
  • Fan Door Cover without Spacer 7300151
DISKS
OPTION # MANUFACTURING
PART #
DESCRIPTION
7111108 7093037  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly with 1 bracket and 1 of the following disks:
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7363537  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 7363535
  • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
7115079 7330686  800GB SAS-3 Solid State Drive Assembly
  • 7330684
  • HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" SAS-3 Solid State Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7364348  800GB SAS-3 Solid State Disk Assembly
  • 7364132
  • Western Digital WUSTM3280ASS200 [HPCAC2DH4ORA800G] (800GB - 2.5" SAS-3 Solid State Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7118670 7350766  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly without Encryption (EAEU part - see note below)
  • 7350764
  • HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS-3 Disk Drive without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7363537  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 7363535
  • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
7118709 7350749  800GB SAS-3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
  • 7350742
  • HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS-3 Disk without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7364350  800GB SAS-3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
  • 7364134
  • Western Digital WUSTM3280ASS204 [HPSAC2DH4ORA800G] (800GB - 2.5" SAS-3 Solid State Disk without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7120558 7361493 8  6.4TB Gen2 NVMe Solid State Drive Assembly
  • 7361456
  • Intel SSDPE2KE064T8E [ICRPC2DD2ORA6.4T] (6.4TB Gen2 - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
  • 541-2123
  • Marlin 2.5" Bracket
7111103  7093015  600GB - 10000 RPM SAS-3 Disk Drive Assembly with 1 bracket and 1 of the following disks:
  • 7093013
  • Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS-3 Disk Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7115457  7340035 9  6.4TB NVMe Solid State Drive Assembly
  • 7335940
  • Intel SSDPE2KE064T7 [ICDPC2DD2ORA6.4T] (6.4TB - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
  • 541-2123
  • Marlin 2.5" Bracket
7118672  7352257  600GB - 10000 RPM SAS-3 Disk Drive Assembly without Encryption (EAEU part - see note below)
  • 7352258
  • HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS-3 Disk Drive without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
n/a 8200038   600GB 10000 RPM SAS-3 Disk Drive Assembly, FSB Certified
  • 8200040
  • Seagate ST1200MM0099 [ST0600IN9SUN600G] (Destroked 1.2TB 7363535) (FSB Certified)
  • 7363535
  • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
ETHERNET
OPTION # MANUFACTURING
PART #
DESCRIPTION
7100477 7070195  Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7111181 7096675  Quad 10-Gigabit Base-T Ethernet
7114094 7305556  40GbE Long Wave QSFP+ Transceiver
7114134 7319817  Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+
7118016 7339763  Dual 10/25-Gigabit SFP28 Ethernet
7118019 7341433  25GbE Short Wave SFP28 Transceiver
7118021 7347691  25GbE Long Wave SFP28 Transceiver
X1109A-Z 7051223  Dual 10-Gigabit PCI Express Ethernet SFP+ LP
X2124A-N 7326504  10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
X2129A-N 530-4449  10Gb/Sec Short Wave SFP+ Transceiver
X5562A-Z 135-1205  10Gb/Sec Long Wave SFP+ Transceiver
FAN
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7326747 Clear Plastic Air Duct Assembly
n/a 7331870  Fan Module
  • 7331869
  • Dual Counter-rotating Fan, 80x80mm, 14000/12600 RPM
FIBRE CHANNEL
OPTION # MANUFACTURING
PART #
DESCRIPTION
7101674 7023303  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
7101676 7023325  Pair of 16Gbps Short Wave SFP+
  • 7023324
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101678 7023315  Pair of 10Gbps Short Wave SFP+
  • 7023316
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101684 7023036  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
7101686 7023059  Pair of 16Gbps Short Wave SFP+
  • 7023053
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
7115461 7335907 10  Dual 32Gbps Fibre Channel Host Adapter
  • 7335907a
  • Emulex Dual Port 32Gbps Fibre HBA
  • 7335907b
  • Pair of Emulex 32Gbps Short Wave SFP+ Transceivers
  • 7335907c
  • Emulex 32Gbps Short Wave SFP+ Transceiver
7115462 7335902 11  QLogic Dual Port 32Gbps Fibre HBA
  • 7335902a
  • QLogic Dual Port 32Gbps Fibre HBA
  • 7340777
  • Pair of QLogic 32Gbps Short Wave SFP+ Transceivers
  • 7340776
  • QLogic 32Gbps Short Wave SFP+ Transceiver
I/O
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7064634  8-Port PCI Express Switch
  • 7096186
  • PCI Express Switch w/o Bracket or Heatsink
MEMORY
OPTION # MANUFACTURING
PART #
DESCRIPTION
7114776 7345484  Memory Riser (YUBA_YMM)
  • 7094733
  • Protective Connector Cover
  • 7330186
  • Mounting Tray
  • 7345480
  • Memory Riser (fruid 7345480)
7118205 7325772  32GB DDR4-2400 Registered DIMM
7118206 7325773  64GB DDR4-2400 Load Reduced DIMM
7119479 7358667  16GB DDR4-2666 Registered DIMM, 1-Rank (runs at 2400MHz)
7118204  7325771  16GB DDR4-2400 Registered DIMM, 2-Rank
n/a 7074618  2GB Embedded USB
POWER
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7319628 Power Supply Blocking Filler Panel
n/a 7333459  Type A266 800/1200 Watt AC Input Power Supply (India ISI)
n/a 7350780  Type A266 800/1200 Watt AC Input Power Supply (Taiwan BSMI RoHS)
n/a 8200116  Type A266 800/1200 Watt AC Input Power Supply (India BIS Label Update)
n/a 7358600   Type A266 800/1200 Watt AC Input Power Supply
RACK
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 350-1719  1U/2U Snap-In Slide Rail Rackmount Kit
n/a 7042273  1U/2U Cable Management Arm (Snap-in)
REMOVABLE MEDIA
OPTION # MANUFACTURING
PART #
DESCRIPTION
7111911 12 7093727 External USB DVD Assembly
  • 7093729
  • USB DVD w/o AC adapter, USB cable, power cable,V2
7093728 USB DVD AC Adapter & Cable Kit
  • 7075046
  • USB DVD Cable
  • 7093730
  • USB DVD Adapter w/o Power Cable
n/a 7096422 DVD Filler Panel
SCSI
OPTION # MANUFACTURING
PART #
DESCRIPTION
7110119 7085208  8-Port 12Gbps SAS-3 HBA (External)
7120562 7361454  6.4TB Flash Accelerator F640B v2 NVMe Card
7115455  7335943 13  6.4TB Flash Accelerator F640 NVMe Card
SYSTEM BOARD
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7351405  System Board Assembly
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
  • 7051520
  • Rear I/O Board
  • 7074618
  • 2GB Embedded USB
  • 7331682
  • System Board Tray
  • 7346957
  • 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
  • 7351402
  • System Board
  • 371-2210
  • 3V Lithium Coin Cell Battery
  • 525-2146
  • SSCC NVRAM

SYSTEM SERVICE PROCESSOR
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7343771  Service Processor Assembly
  • 7338746
  • Cover
  • 7343772
  • Service Processor (Fruid 7343772)

Adirondack Networks Hardware Warranty:

Depot warranty includes telephone support and defective part replacement. Warranty period is 30 days from date of sale on computer components, configured refurbished workstations and servers. Telephone support and RMA department assistance is available between the hours of 9:00 a.m. and 5:00 p.m. (Eastern Standard Time), Monday through Friday, excluding holidays. Warranty is void on items termed "as is" basis.

Extended Hardware Maintenance Warranty:

The extended warranty period must be purchased in 12-month increments. An extended warranty is available and may be purchased at the time of sale, during, or at the end of an existing warranty time period.

Warranty Repair:

If a component part or system becomes defective outside of the warranty period, Adirondack Networks shall charge a nominal fee for evaluation and repair of the defective part. Any replacement or additional parts needed for repair shall be billed to the customer. Customers will be given a quote on repair costs prior to a repair being completed.

GET AN MAINTENANCE QUOTE

Sell us your IT Equipment

We Buy Used Computer & Networking Hardware

If your company has IT equipment that is no longer needed, we are constantly buying new, used, decommissioned or off- lease equipment. Contact Adirondack Networks for a competitive buy-out offer or trade-in allowance and let us help you recover your technology assets and get a return on your original investment.

GET A BUY-OUT QUOTE

About us

Adirondack Networks is a leading provider of new, refurbished and used Oracle SPARC T8-1 Server hardware. We specialize in Oracle SPARC Servers and many other computer server and networking hardware products. Adirondack Networks delivers the best technology and networking products at the best prices. Through our global network of partners, we are able to deliver hardware like the Oracle SPARC T8-1 Server to our customers more efficiently and more cost effectively than mainline distribution. If you are looking to get the job done ahead of schedule and under budget, you are looking for us. Find Oracle T8-1 hardware, components and upgrades at the lowest prices. Adirondack Networks continues to provide hard-to-find discontinued or end-of-life computer servers, networking equipment and replacement parts and can save your company up to 85% off list price.

Contact us if you have questions or need more information on Part#: Oracle T8-1

Adirondack Networks also offers extended warranties on the Oracle SPARC T8-1 Server and other Oracle SPARC Servers. Contact us for options and pricing.

We can save you 50% or more
on your current maintenance contract costs!

or
Contact us

For a Limited Time
 GET 3 MONTHS FREE!

REQUEST QUOTE or CALLBACK
Oracle SPARC Servers: Oracle SPARC T8-1 Server
