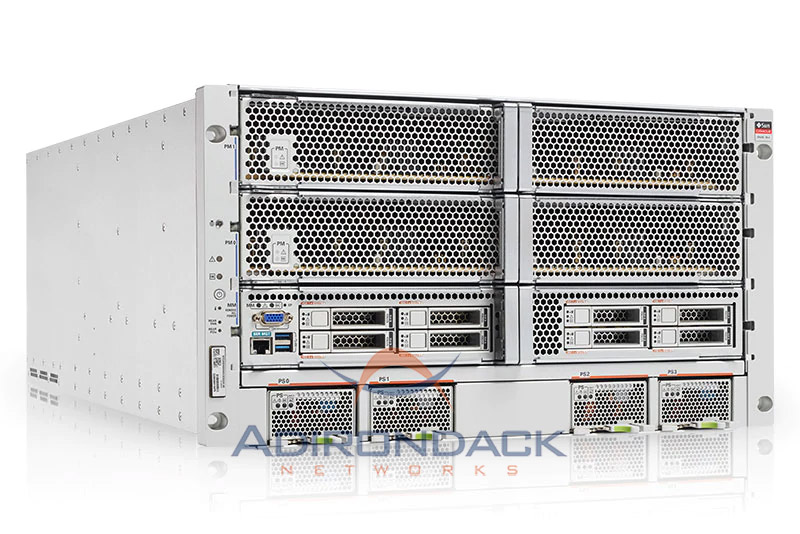

Oracle SPARC T8-4 Server

Oracle’s SPARC T8-4 Server is a breakthrough four-socket server coengineered with Oracle Database, Java, and enterprise applications for maximum efficiency. Unique, built-in security technology helps protect data against intrusions by malware and security breaches.
Manufacturer Oracle Sun
Part Number(s): Oracle T8-4

IN STOCK > VIEW INVENTORY


Adirondack Networks offers complete configurations as well as individual parts and upgrades for this system. Contact us for a customized quote.

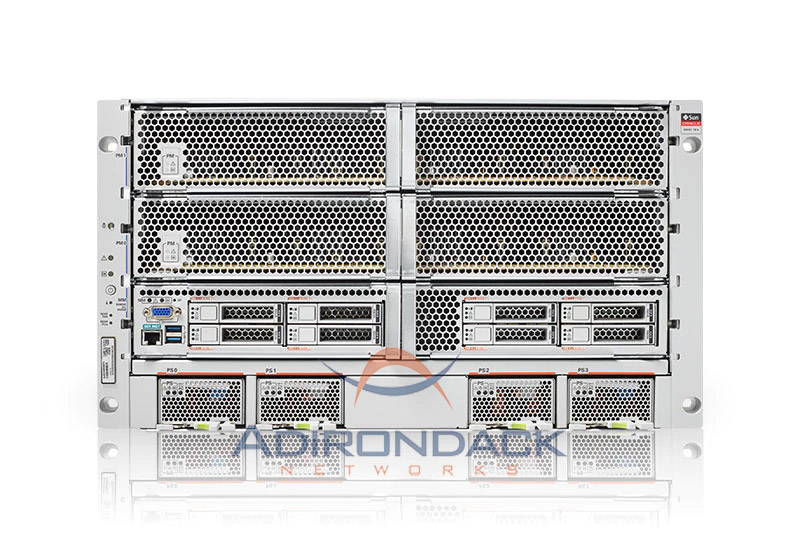

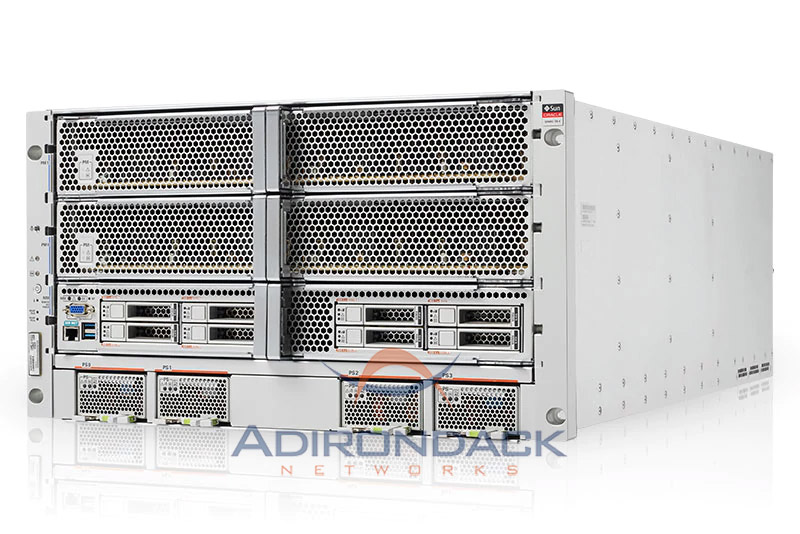

SPARC-T8-4-600px-a SPARC-T8-4-600px-b

SPARC-T8-4 Component List

Untitled Document
Batteries
Option # Manufacturing
Part #
Description
n/a 371-2210  3V Lithium Coin Cell Battery
CPU Module
Option # Manufacturing
Part #
Description
n/a 7347635 Processor Filler Module Assembly
  • 7337061
  • Processor Filler Module LED Flex Cable
  • 7347431
  • Processor Filler Module (fruid 7347431)
  • 7347636
  • Enclosure
n/a 7348967  Processor Filler Module Assembly
  • 7337061
  • Processor Filler Module LED Flex Cable
  • 7347636
  • Enclosure
  • 7348966
  • Processor Filler Module (fruid 7348966)
n/a 7353482  Dual 32-Core 5.000GHZ Processor Module Assembly
  • 7346957
  • 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
  • 7348964
  • CPU/Memory Module (fruid 7348964)
  • 7353483
  • Enclosure
  • 7362558
  • 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
n/a 7353487  Dual 32-Core 5.000GHZ Processor Module Assembly
  • 7345344
  • CPU/Memory Module (fruid 7345344)
  • 7346957
  • 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
  • 7353483
  • Enclosure
n/a 8200319  Processor Filler Module Assembly
  • 7337061
  • Processor Filler Module LED Flex Cable
  • 7347636
  • Enclosure
  • 7348966
  • Processor Filler Module (fruid 7348966)
Cables
Option # Manufacturing
Part #
Description
7102869 7039990  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 10M
7102870 7039999  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 20M
7102871 7040001  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 50M
7105148 CBL-SFP-2M  SFP+ Passive Copper Cable, 2M [SKU]
7105199 7063849  InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M
7105206 7063852  InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M
7114369 7308821  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M
7114370 7308822  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M
7114371 7308823  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M
7118363 7348892  QSFP28 to 4x SFP28 Copper Splitter Cable, 1M
7118364 7348895  QSFP28 to 4x SFP28 Copper Splitter Cable, 2M
7118365 7348898  QSFP28 to 4x SFP28 Copper Splitter Cable, 30AWG, 3M
7118366 7348901  QSFP28 to 4x SFP28 Copper Splitter Cable, 5M
7118367 7348904  SFP28 Twinaxial Passive Copper Cable, 1M
7118368 7348907  SFP28 Twinaxial Passive Copper Cable, 2M
7118369 7348910  SFP28 Twinaxial Passive Copper Cable, 3M
7118370 7348913  SFP28 Twinaxial Passive Copper Cable, 5M
X2121A-1M-N 530-4444  10Gbps QSFP to QSFP Passive Copper Cable, 1m
X2121A-2M 530-4567  10Gbps QSFP to QSFP Passive Copper Cable, 2m
X2121A-3M-N 530-4445  10Gbps QSFP to QSFP passive Copper Cable, 3m
X2121A-5M-N 530-4446  10Gbps QSFP to QSFP Passive Copper Cable, 5m
X2125A-1M-N 530-4450  QSFP to 4× SFP+ Splitter Cable, 1m
X2125A-3M-N 530-4451  QSFP to 4× SFP+ Splitter Cable, 3m
X2125A-5M-N 530-4452  QSFP to 4× SFP+ Splitter Cable, 5m
X2127A-10M 530-4480  MPO to 4x LC Duplex Splitter Cable, 10m
X2127A-20M 530-4481  MPO to 4x LC Duplex Splitter Cable, 20m
X2127A-50M 530-4482  MPO to 4x LC Duplex Splitter Cable, 50m
X2130A-1M-N 530-4441  10Gbps SFP+ TwinX Cable, 1m
X2130A-3M-N 530-4442  10Gbps SFP+ TwinX Cable, 3m
X2130A-5M-N 530-4443  10Gbps SFP+ TwinX Cable, 5m
n/a 530-3623 Shielded RJ45 to RJ45 Cable, 4M
n/a 7308812  Dual Mini SAS-3 HD8i Cable Assembly (NVMe)
  • n/a
  • 72-Pin SFF-8643 Mini SAS HD to 90° SFF-8087, 300mm
  • n/a
  • 72-Pin SFF-8643 Mini SAS HD to 90° SFF-8087, 330mm
n/a 7341507  Cable Kit [SKU]
  • 530-4399
  • Backplane to System Board Power Cable, 208mm
  • 7024616
  • Front I/O Cable
  • 7096396
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 170mm
  • 7096397
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 100mm
  • 7337047
  • Processor Module LED Flex Cable
  • 7337061
  • Processor Filler Module LED Flex Cable
Chassis
Option # Manufacturing
Part #
Description
n/a 7345888 T8-4 L3 Chassis Assembly
  • 7039012
  • Front LED Assembly
    • 7026425
    • LED Board
    • 7039033
    • Flex Cable
    • 7045102
    • Jumper Cable
n/a 7348780  T8-4 Rear Chassis Subassembly (RSCA) (fruid 7047329)
  • 7025951
  • AC Ground Wire
  • 7025969
  • 20A AC Input Line Filter
  • 7329552
  • Rear Chassis Subassembly
  • 7348778
  • Midplane Assembly
    • 7047329
    • Fan Board
    • 7066366
    • Internal AC Power Cable
    • 7067678
    • Bus Bar
    • 7081485
    • PCI Express Express Module Backplane
    • 7314566
    • Midplane
    • 7316591
    • Lower Fan Board to Midplane Cable
    • 7352776
    • Fan Power Cable
Communication
Option # Manufacturing
Part #
Description
7104074 7092757  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
n/a 7046442  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
Disk Backplane
Option # Manufacturing
Part #
Description
n/a 7314591 Disk Backplane Assembly
  • 530-4399
  • Backplane to System Board Power Cable, 208mm
  • 7096396
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 170mm
  • 7096397
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 100mm
  • 7303515
  • 8-Slot Disk Backplane
Disks
Option # Manufacturing
Part #
Description
7111108 7093037  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly with 1 bracket and 1 of the following disks:
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7363537  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 7363535
  • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
7115079 7330686  800GB SAS-3 Solid State Drive Assembly
  • 7330684
  • HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" SAS-3 Solid State Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7364348  800GB SAS-3 Solid State Disk Assembly
  • 7364132
  • Western Digital WUSTM3280ASS200 [HPCAC2DH4ORA800G] (800GB - 2.5" SAS-3 Solid State Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7118670 7350766  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly without Encryption (EAEU part - see note below)
  • 7350764
  • HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS-3 Disk Drive without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7363537  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 7363535
  • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
7118709 7350749  800GB SAS-3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
  • 7350742
  • HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS-3 Disk without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7364350  800GB SAS-3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
  • 7364134
  • Western Digital WUSTM3280ASS204 [HPSAC2DH4ORA800G] (800GB - 2.5" SAS-3 Solid State Disk without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7120558 7361493 2  6.4TB Gen2 NVMe Solid State Drive Assembly
  • 7361456
  • Intel SSDPE2KE064T8E [ICRPC2DD2ORA6.4T] (6.4TB Gen2 - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
  • 541-2123
  • Marlin 2.5" Bracket
7111103  7093015  600GB - 10000 RPM SAS-3 Disk Drive Assembly with 1 bracket and 1 of the following disks:
  • 7093013
  • Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS-3 Disk Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7115457  7340035 3  6.4TB NVMe Solid State Drive Assembly
  • 7335940
  • Intel SSDPE2KE064T7 [ICDPC2DD2ORA6.4T] (6.4TB - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
  • 541-2123
  • Marlin 2.5" Bracket
7118672  7352257  600GB - 10000 RPM SAS-3 Disk Drive Assembly without Encryption (EAEU part - see note below)
  • 7352258
  • HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS-3 Disk Drive without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
n/a 8200038   600GB 10000 RPM SAS-3 Disk Drive Assembly, FSB Certified
  • 8200040
  • Seagate ST1200MM0099 [ST0600IN9SUN600G] (Destroked 1.2TB 7363535) (FSB Certified)
    • 7363535
    • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
Ethernet
Option # Manufacturing
Part #
Description
7100477 7070195  Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7111181 7096675  Quad 10-Gigabit Base-T Ethernet
7114094 7305556  40GbE Long Wave QSFP+ Transceiver
7114134 7319817  Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+
7118016 7339763  Dual 10/25-Gigabit SFP28 Ethernet
7118019 7341433  25GbE Short Wave SFP28 Transceiver
7118021 7347691  25GbE Long Wave SFP28 Transceiver
X1109A-Z 7051223  Dual 10-Gigabit PCI Express Ethernet SFP+ LP
X2124A-N 7326504  10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
X2129A-N 530-4449  10Gb/Sec Short Wave SFP+ Transceiver
X5562A-Z 135-1205  10Gb/Sec Long Wave SFP+ Transceiver
Fan
Option # Manufacturing
Part #
Description
n/a 7334158  Fan Module
  • 7334155
  • Dual Counterrotating Fan, 80x80x86mm, 13000/12300 RPM
Fibre Channel
Option # Manufacturing
Part #
Description
7101674 7023303  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
7101676 7023325  Pair of 16Gbps Short Wave SFP+
  • 7023324
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101678 7023315  Pair of 10Gbps Short Wave SFP+
  • 7023316
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101684 7023036  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
7101686 7023059  Pair of 16Gbps Short Wave SFP+
  • 7023053
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
7115461 7335907 4  Dual 32Gbps Fibre Channel Host Adapter
  • 7335907a
  • Emulex Dual Port 32Gbps Fibre HBA
  • 7335907b
  • Pair of Emulex 32Gbps Short Wave SFP+ Transceivers
    • 7335907c
    • Emulex 32Gbps Short Wave SFP+ Transceiver
7115462 7335902 5  QLogic Dual Port 32Gbps Fibre HBA
  • 7335902a
  • QLogic Dual Port 32Gbps Fibre HBA
  • 7340777
  • Pair of QLogic 32Gbps Short Wave SFP+ Transceivers
    • 7340776
    • QLogic 32Gbps Short Wave SFP+ Transceiver
I/O
Option # Manufacturing
Part #
Description
n/a 7045172 Front I/O Assembly
  • 7018190
  • I/O Board
  • 7020653
  • VGA Board
  • 7024616
  • Front I/O Cable
n/a 7064634  8-Port PCI Express Switch
  • 7096186
  • PCI Express Switch w/o Bracket or Heatsink
n/a 7348781  Rear I/O Assembly
  • 7074618
  • 2GB Embedded USB
  • 7092877
  • USB T10 Torx Thumbscrew, M3 0.5 x 6mm
  • 7347429
  • Rear I/O Board (fruid 7347429)
n/a 7360352  x16 PCI Express Carrier Assembly with Bumper
  • 7318752
  • PCI Express Carrier Enclosure
  • 7360345
  • x16 PCI Express Carrier Board
n/a 7089613   x16 PCI Express Carrier Assembly
  • 7092099
  • x16 PCI Express Carrier Board
  • 7318752
  • PCI Express Carrier Enclosure
Memory
Option # Manufacturing
Part #
Description
7118205 7325772  32GB DDR4-2400 Registered DIMM
7118206 7325773  64GB DDR4-2400 Load Reduced DIMM
n/a 7074618  2GB Embedded USB
n/a 7092877 USB T10 Torx Thumbscrew, M3 0.5 x 6mm
Power
Option # Manufacturing
Part #
Description
n/a 7336222  Type A265 3000W AC Input Power Supply
n/a 7350778  Type A265 3000W AC Input Power Supply (Taiwan BSMI)
n/a 8200273  Type A265 3000W AC Input Power Supply (India BIS label update)
Rack
Option # Manufacturing
Part #
Description
n/a 7069793  Cable Management Assembly
  • 7063313
  • Cable Management Adapter Bracket
  • 7068001
  • Cable Management Assembly
n/a 7096048  Rack Mount Kit
  • 240-6579
  • M6 Cage Nut (x6)
  • 240-7665
  • 10-32 x 1/4" Shoulder Screw (x12)
  • 240-7667
  • 10-32 x 7/16" SEMS Screw (x12)
  • 341-6433
  • Rack Mount Bracket, Tapped Holes
  • 7069238
  • Shipping Bracket Shear Pin (x2)
  • 7069536
  • Right Top Rear Shipping Bracket
  • 7069537
  • Left Top Rear Shipping Bracket
  • 7069538
  • Shipping Bracket Assembly
  • 7075759
  • Shipping Bracket Top Guide Pin (x2)
  • 7097157
  • M6 x 1.0 x 16mm T-30 Pan Head Double Washer Screw (x16)
  • 7097158
  • M6 x 1.0 x 12mm T-30 Pan Head Double Washer Screw (x16)
  • 7303117
  • Rail Kit
    • 341-6410
    • Universal Rack Mount Bracket, M6 Holes
    • 7088801
    • Right Rail
    • 7088805
    • Left Rail
Removable Media
Option # Manufacturing
Part #
Description
7111911 6 7093727 External USB DVD Assembly
  • 7093729
  • USB DVD w/o AC adapter, USB cable, power cable,V2
7093728 USB DVD AC Adapter & Cable Kit
  • 7075046
  • USB DVD Cable
  • 7093730
  • USB DVD Adapter w/o Power Cable
6 In Japan, order X-Option 7111912.
SCSI
Option # Manufacturing
Part #
Description
7110119 7085208  8-Port 12Gbps SAS-3 HBA (External)
7115455  7335943 7  6.4TB Flash Accelerator F640 NVMe Card
7 This part may return part # 7340636 in FRUID output. 7335943 is the FRU/CRU part # to order.
System Board
Option # Manufacturing
Part #
Description
n/a 7303515 8-Slot Disk Backplane
n/a 7346957 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
n/a 7348960  T8-4 Main Module Assembly
  • 7045172
  • Front I/O Assembly
    • 7018190
    • I/O Board
    • 7020653
    • VGA Board
    • 7024616
    • Front I/O Cable
  • 7314591
  • Disk Backplane Assembly
    • 530-4399
    • Backplane to System Board Power Cable, 208mm
    • 7096396
    • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 170mm
    • 7096397
    • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 100mm
    • 7303515
    • 8-Slot Disk Backplane
  • 7348959
  • System Board Assembly
    • 7095596
    • Enclosure
    • 7348958
    • System Board
      • 371-2210
      • 3V Lithium Coin Cell Battery
      • 525-2146
      • SSCC NVRAM
System Service Processor
Option # Manufacturing
Part #
Description
n/a 7343771  Service Processor Assembly
  • 7338746
  • Cover
  • 7343772
  • Service Processor (Fruid 7343772)

We can save you 50% or more
on your current maintenance contract costs!

For a Limited Time
 GET 3 MONTHS FREE!

REQUEST QUOTE or CALLBACK
Oracle SPARC Servers: Oracle SPARC T8-4 Server

About the Oracle SPARC T8-4 Server

  • Processor
  • •Thirty-two core, 5.0 GHz SPARC M8 processor
  • •Up to 256 threads per processor (up to 8 threads per core)
  • •Eight Data Analytics Accelerator units per processor, each supporting four concurrent in-memory analytics engines with decompression
  • •Thirty-two on-chip encryption instruction accelerators (one per core) with direct non-privileged support for 16 industry-standard cryptographic algorithms: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-3, SHA-384, and SHA-512
  • •Thirty-two floating-point units and thirty-two Oracle Numbers units per processor (one per core)
  • •One random number generator (one per processor)
  • Cache Per Processor
  • •Level 1: 32 KB instruction and 16 KB data per core
  • •Level 2: 256 KB L2 I$ per four cores, 128 KB L2 D$ per core
  • •Level 3: 64 MB L3$ on chip
  • System Configurations
  • •SPARC T8-4 servers may be configured with either two or four SPARC M8 processors; upgradeable from two to four processors
  • •Sixteen dual inline memory module (DIMM) slots per processor supporting half and fully populated memory configurations using 32 or 64 GB DDR4 DIMMs
    •     ○4 TB maximum memory configuration with a four-processor system and 64 GB DIMMs
    •     ○2 TB maximum memory configuration with a two-processor system and 64 GB DIMMs
    • System Architecture
    • •SPARC V9 architecture, ECC protected
    • Inetrfaces
    • •Network: Four 10 GbE (100 Mb/sec, 1 Gb/sec, 10 Gb/sec) ports, full duplex only, auto-negotiating
    • •Expansion bus: Sixteen low-profile PCIe 3.0 slots, each accessed via a hot-pluggable carrier (eight x8 and eight x16 slots)
    • •Ports: Four external USB 3.0 (two front, two rear), one RJ45 serial management port, console 100 Mb/1 Gb network port, two VGA ports (one front, one rear)
    • Internal Storage
    • •Up to eight 600 GB or 1,200 GB 2.5-inch SAS drives
    • •Optional external DVD unit available
    • •Optional internal storage may be installed within the standard drive bays
    •     ○800 GB solid-state drives (SSDs), maximum of eight
    •     ○6.4 TB NVMe drives, maximum of eight
        • Power Supplies
        • •Four hot-swappable AC 3,000 W redundant (2 + 2) power supplies
        • •Voltage 200 to 240 VAC, frequency 50/60 Hz
        • •Maximum operating input current at 200 VAC: 16 A per cord
        • •Maximum operating input power at 200 VAC: 5,040 W
        • Key Ras Features
    • •Hot-plug disk drives
    • •Hot-pluggable PCIe card carriers
    • •Redundant, hot-swappable power supplies and fans
    • •Environmental monitoring
    • •Extended memory protection with error correction within single SDRAM, triple-bit detection across SDRAMs, page retirement, memory scrubbing, cyclic redundancy check (CRC), message retry, and lane retire in hardware
    • •DIMM sparing enabled with fully populated memory slots, increasing system reliability and uptime
    • •System Interconnect: message retry, link retrain, and lane failover
    • •Integrated disk controller with RAID 0, 1, and 1E/10
    • •Fault Management Architecture and Predictive Self Healing
    • •Live operating system upgrades
    • •Firmware updates during system operation
    • •Multiple PCIe root complexes for isolated I/O virtualization
    • Operating System
    • Oracle recommends the latest version of Oracle Solaris 11.3 for enhanced performance and functionality, including features enabled by Software in Silicon technology.
    • •Control domain: Oracle Solaris 11.3 SRU 24 or later
    • •The following versions are supported within guest domains:
      •     ○Oracle Solaris 11.3 SRU 24 or later
        •     ○Oracle Solaris 10 1/13*
          •     *Plus required patches
    • Virtualization
    • Built-in, no-cost Oracle VM Server for SPARC provides the flexibility and power for running multiple logical domains in a single server. Multiple Oracle Solaris Zones may be run within a single Oracle VM Server for SPARC logical domain.
    • Dimensions
    • •Height: 266.7 mm (10.5 in.); 6U
    • •Width: 445 mm (17.5 in.)
    • •Depth: 835 mm (32.9 in.)

Component List

BATTERIES
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 371-2210  3V Lithium Coin Cell Battery

CPU MODULE
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7347635 Processor Filler Module Assembly
  • 7337061
  • Processor Filler Module LED Flex Cable
  • 7347431
  • Processor Filler Module (fruid 7347431)
  • 7347636
  • Enclosure
n/a 7348967  Processor Filler Module Assembly
  • 7337061
  • Processor Filler Module LED Flex Cable
  • 7347636
  • Enclosure
  • 7348966
  • Processor Filler Module (fruid 7348966)
n/a 7353482  Dual 32-Core 5.000GHZ Processor Module Assembly
  • 7346957
  • 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
  • 7348964
  • CPU/Memory Module (fruid 7348964)
  • 7353483
  • Enclosure
  • 7362558
  • 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
n/a 7353487  Dual 32-Core 5.000GHZ Processor Module Assembly
  • 7345344
  • CPU/Memory Module (fruid 7345344)
  • 7346957
  • 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
  • 7353483
  • Enclosure
n/a 8200319  Processor Filler Module Assembly
  • 7337061
  • Processor Filler Module LED Flex Cable
  • 7347636
  • Enclosure
  • 7348966
  • Processor Filler Module (fruid 7348966)
CABLES
OPTION # MANUFACTURING
PART #
DESCRIPTION
7102869 7039990  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 10M
7102870 7039999  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 20M
7102871 7040001  MPO to MPO High Bandwidth QSFP Optical Cable, OM3, Aqua, 50M
7105148 CBL-SFP-2M  SFP+ Passive Copper Cable, 2M [SKU]
7105199 7063849  InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M
7105206 7063852  InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M
7114369 7308821  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M
7114370 7308822  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M
7114371 7308823  MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M
7118363 7348892  QSFP28 to 4x SFP28 Copper Splitter Cable, 1M
7118364 7348895  QSFP28 to 4x SFP28 Copper Splitter Cable, 2M
7118365 7348898  QSFP28 to 4x SFP28 Copper Splitter Cable, 30AWG, 3M
7118366 7348901  QSFP28 to 4x SFP28 Copper Splitter Cable, 5M
7118367 7348904  SFP28 Twinaxial Passive Copper Cable, 1M
7118368 7348907  SFP28 Twinaxial Passive Copper Cable, 2M
7118369 7348910  SFP28 Twinaxial Passive Copper Cable, 3M
7118370 7348913  SFP28 Twinaxial Passive Copper Cable, 5M
X2121A-1M-N 530-4444  10Gbps QSFP to QSFP Passive Copper Cable, 1m
X2121A-2M 530-4567  10Gbps QSFP to QSFP Passive Copper Cable, 2m
X2121A-3M-N 530-4445  10Gbps QSFP to QSFP passive Copper Cable, 3m
X2121A-5M-N 530-4446  10Gbps QSFP to QSFP Passive Copper Cable, 5m
X2125A-1M-N 530-4450  QSFP to 4× SFP+ Splitter Cable, 1m
X2125A-3M-N 530-4451  QSFP to 4× SFP+ Splitter Cable, 3m
X2125A-5M-N 530-4452  QSFP to 4× SFP+ Splitter Cable, 5m
X2127A-10M 530-4480  MPO to 4x LC Duplex Splitter Cable, 10m
X2127A-20M 530-4481  MPO to 4x LC Duplex Splitter Cable, 20m
X2127A-50M 530-4482  MPO to 4x LC Duplex Splitter Cable, 50m
X2130A-1M-N 530-4441  10Gbps SFP+ TwinX Cable, 1m
X2130A-3M-N 530-4442  10Gbps SFP+ TwinX Cable, 3m
X2130A-5M-N 530-4443  10Gbps SFP+ TwinX Cable, 5m
n/a 530-3623 Shielded RJ45 to RJ45 Cable, 4M
n/a 7308812  Dual Mini SAS-3 HD8i Cable Assembly (NVMe)
  • n/a
  • 72-Pin SFF-8643 Mini SAS HD to 90° SFF-8087, 300mm
  • n/a
  • 72-Pin SFF-8643 Mini SAS HD to 90° SFF-8087, 330mm
n/a 7341507  Cable Kit [SKU]
  • 530-4399
  • Backplane to System Board Power Cable, 208mm
  • 7024616
  • Front I/O Cable
  • 7096396
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 170mm
  • 7096397
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 100mm
  • 7337047
  • Processor Module LED Flex Cable
  • 7337061
  • Processor Filler Module LED Flex Cable
CHASSIS
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7345888 T8-4 L3 Chassis Assembly
  • 7039012
  • Front LED Assembly
    • 7026425
    • LED Board
    • 7039033
    • Flex Cable
    • 7045102
    • Jumper Cable
n/a 7348780  T8-4 Rear Chassis Subassembly (RSCA) (fruid 7047329)
  • 7025951
  • AC Ground Wire
  • 7025969
  • 20A AC Input Line Filter
  • 7329552
  • Rear Chassis Subassembly
  • 7348778
  • Midplane Assembly
    • 7047329
    • Fan Board
    • 7066366
    • Internal AC Power Cable
    • 7067678
    • Bus Bar
    • 7081485
    • PCI Express Express Module Backplane
    • 7314566
    • Midplane
    • 7316591
    • Lower Fan Board to Midplane Cable
    • 7352776
    • Fan Power Cable
COMMUNICATION
OPTION # MANUFACTURING
PART #
DESCRIPTION
7104074 7092757  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
n/a 7046442  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
DISK BACKPLANE
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7314591 Disk Backplane Assembly
  • 530-4399
  • Backplane to System Board Power Cable, 208mm
  • 7096396
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 170mm
  • 7096397
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 100mm
  • 7303515
  • 8-Slot Disk Backplane
DISKS
OPTION # MANUFACTURING
PART #
DESCRIPTION
7111108 7093037  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly with 1 bracket and 1 of the following disks:
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7363537  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 7363535
  • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
7115079 7330686  800GB SAS-3 Solid State Drive Assembly
  • 7330684
  • HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" SAS-3 Solid State Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7364348  800GB SAS-3 Solid State Disk Assembly
  • 7364132
  • Western Digital WUSTM3280ASS200 [HPCAC2DH4ORA800G] (800GB - 2.5" SAS-3 Solid State Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7118670 7350766  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly without Encryption (EAEU part - see note below)
  • 7350764
  • HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS-3 Disk Drive without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7363537  1.2TB - 10000 RPM SAS-3 Disk Drive Assembly
  • 7093035
  • HGST HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive)
  • 7363535
  • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
7118709 7350749  800GB SAS-3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
  • 7350742
  • HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS-3 Disk without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7364350  800GB SAS-3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
  • 7364134
  • Western Digital WUSTM3280ASS204 [HPSAC2DH4ORA800G] (800GB - 2.5" SAS-3 Solid State Disk without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
7120558 7361493 2  6.4TB Gen2 NVMe Solid State Drive Assembly
  • 7361456
  • Intel SSDPE2KE064T8E [ICRPC2DD2ORA6.4T] (6.4TB Gen2 - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
  • 541-2123
  • Marlin 2.5" Bracket
7111103  7093015  600GB - 10000 RPM SAS-3 Disk Drive Assembly with 1 bracket and 1 of the following disks:
  • 7093013
  • Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS-3 Disk Drive)
  • 541-2123
  • Marlin 2.5" Bracket
7115457  7340035 3  6.4TB NVMe Solid State Drive Assembly
  • 7335940
  • Intel SSDPE2KE064T7 [ICDPC2DD2ORA6.4T] (6.4TB - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
  • 541-2123
  • Marlin 2.5" Bracket
7118672  7352257  600GB - 10000 RPM SAS-3 Disk Drive Assembly without Encryption (EAEU part - see note below)
  • 7352258
  • HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS-3 Disk Drive without Encryption) (EAEU part - see note below)
  • 541-2123
  • Marlin 2.5" Bracket
n/a 8200038   600GB 10000 RPM SAS-3 Disk Drive Assembly, FSB Certified
  • 8200040
  • Seagate ST1200MM0099 [ST0600IN9SUN600G] (Destroked 1.2TB 7363535) (FSB Certified)
    • 7363535
    • Seagate ST1200MM0099 [ST1200IN9SUN1.2T] (1.2TB - 10000 RPM - SAS-3 Disk Drive) (FSB Certified)
  • 541-2123
  • Marlin 2.5" Bracket
ETHERNET
OPTION # MANUFACTURING
PART #
DESCRIPTION
7100477 7070195  Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7111181 7096675  Quad 10-Gigabit Base-T Ethernet
7114094 7305556  40GbE Long Wave QSFP+ Transceiver
7114134 7319817  Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+
7118016 7339763  Dual 10/25-Gigabit SFP28 Ethernet
7118019 7341433  25GbE Short Wave SFP28 Transceiver
7118021 7347691  25GbE Long Wave SFP28 Transceiver
X1109A-Z 7051223  Dual 10-Gigabit PCI Express Ethernet SFP+ LP
X2124A-N 7326504  10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
X2129A-N 530-4449  10Gb/Sec Short Wave SFP+ Transceiver
X5562A-Z 135-1205  10Gb/Sec Long Wave SFP+ Transceiver
FAN
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7334158  Fan Module
  • 7334155
  • Dual Counterrotating Fan, 80x80x86mm, 13000/12300 RPM
FIBRE CHANNEL
OPTION # MANUFACTURING
PART #
DESCRIPTION
7101674 7023303  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
7101676 7023325  Pair of 16Gbps Short Wave SFP+
  • 7023324
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101678 7023315  Pair of 10Gbps Short Wave SFP+
  • 7023316
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101684 7023036  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
7101686 7023059  Pair of 16Gbps Short Wave SFP+
  • 7023053
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
7115461 7335907 4  Dual 32Gbps Fibre Channel Host Adapter
  • 7335907a
  • Emulex Dual Port 32Gbps Fibre HBA
  • 7335907b
  • Pair of Emulex 32Gbps Short Wave SFP+ Transceivers
    • 7335907c
    • Emulex 32Gbps Short Wave SFP+ Transceiver
7115462 7335902 5  QLogic Dual Port 32Gbps Fibre HBA
  • 7335902a
  • QLogic Dual Port 32Gbps Fibre HBA
  • 7340777
  • Pair of QLogic 32Gbps Short Wave SFP+ Transceivers
    • 7340776
    • QLogic 32Gbps Short Wave SFP+ Transceiver
I/O
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7045172 Front I/O Assembly
  • 7018190
  • I/O Board
  • 7020653
  • VGA Board
  • 7024616
  • Front I/O Cable
n/a 7064634  8-Port PCI Express Switch
  • 7096186
  • PCI Express Switch w/o Bracket or Heatsink
n/a 7348781  Rear I/O Assembly
  • 7074618
  • 2GB Embedded USB
  • 7092877
  • USB T10 Torx Thumbscrew, M3 0.5 x 6mm
  • 7347429
  • Rear I/O Board (fruid 7347429)
n/a 7360352  x16 PCI Express Carrier Assembly with Bumper
  • 7318752
  • PCI Express Carrier Enclosure
  • 7360345
  • x16 PCI Express Carrier Board
n/a 7089613   x16 PCI Express Carrier Assembly
  • 7092099
  • x16 PCI Express Carrier Board
  • 7318752
  • PCI Express Carrier Enclosure
MEMORY
OPTION # MANUFACTURING
PART #
DESCRIPTION
7118205 7325772  32GB DDR4-2400 Registered DIMM
7118206 7325773  64GB DDR4-2400 Load Reduced DIMM
n/a 7074618  2GB Embedded USB
n/a 7092877 USB T10 Torx Thumbscrew, M3 0.5 x 6mm
POWER
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7336222  Type A265 3000W AC Input Power Supply
n/a 7350778  Type A265 3000W AC Input Power Supply (Taiwan BSMI)
n/a 8200273  Type A265 3000W AC Input Power Supply (India BIS label update)
RACK
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7069793  Cable Management Assembly
  • 7063313
  • Cable Management Adapter Bracket
  • 7068001
  • Cable Management Assembly
n/a 7096048  Rack Mount Kit
  • 240-6579
  • M6 Cage Nut (x6)
  • 240-7665
  • 10-32 x 1/4" Shoulder Screw (x12)
  • 240-7667
  • 10-32 x 7/16" SEMS Screw (x12)
  • 341-6433
  • Rack Mount Bracket, Tapped Holes
  • 7069238
  • Shipping Bracket Shear Pin (x2)
  • 7069536
  • Right Top Rear Shipping Bracket
  • 7069537
  • Left Top Rear Shipping Bracket
  • 7069538
  • Shipping Bracket Assembly
  • 7075759
  • Shipping Bracket Top Guide Pin (x2)
  • 7097157
  • M6 x 1.0 x 16mm T-30 Pan Head Double Washer Screw (x16)
  • 7097158
  • M6 x 1.0 x 12mm T-30 Pan Head Double Washer Screw (x16)
  • 7303117
  • Rail Kit
    • 341-6410
    • Universal Rack Mount Bracket, M6 Holes
    • 7088801
    • Right Rail
    • 7088805
    • Left Rail
REMOVABLE MEDIA
OPTION # MANUFACTURING
PART #
DESCRIPTION
7111911 6 7093727 External USB DVD Assembly
  • 7093729
  • USB DVD w/o AC adapter, USB cable, power cable,V2
7093728 USB DVD AC Adapter & Cable Kit
  • 7075046
  • USB DVD Cable
  • 7093730
  • USB DVD Adapter w/o Power Cable
6 In Japan, order X-Option 7111912.
SCSI
OPTION # MANUFACTURING
PART #
DESCRIPTION
7110119 7085208  8-Port 12Gbps SAS-3 HBA (External)
7115455  7335943 7  6.4TB Flash Accelerator F640 NVMe Card
7 This part may return part # 7340636 in FRUID output. 7335943 is the FRU/CRU part # to order.
SYSTEM BOARD
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7303515 8-Slot Disk Backplane
n/a 7346957 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
n/a 7348960  T8-4 Main Module Assembly
  • 7045172
  • Front I/O Assembly
    • 7018190
    • I/O Board
    • 7020653
    • VGA Board
    • 7024616
    • Front I/O Cable
  • 7314591
  • Disk Backplane Assembly
    • 530-4399
    • Backplane to System Board Power Cable, 208mm
    • 7096396
    • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 170mm
    • 7096397
    • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 100mm
    • 7303515
    • 8-Slot Disk Backplane
  • 7348959
  • System Board Assembly
    • 7095596
    • Enclosure
    • 7348958
    • System Board
      • 371-2210
      • 3V Lithium Coin Cell Battery
      • 525-2146
      • SSCC NVRAM

SYSTEM SERVICE PROCESSOR
OPTION # MANUFACTURING
PART #
DESCRIPTION
n/a 7343771  Service Processor Assembly
  • 7338746
  • Cover
  • 7343772
  • Service Processor (Fruid 7343772

Adirondack Networks Hardware Warranty:

Depot warranty includes telephone support and defective part replacement. Warranty period is 30 days from date of sale on computer components, configured refurbished workstations and servers. Telephone support and RMA department assistance is available between the hours of 9:00 a.m. and 5:00 p.m. (Eastern Standard Time), Monday through Friday, excluding holidays. Warranty is void on items termed "as is" basis.

Extended Hardware Maintenance Warranty:

The extended warranty period must be purchased in 12-month increments. An extended warranty is available and may be purchased at the time of sale, during, or at the end of an existing warranty time period.

Warranty Repair:

If a component part or system becomes defective outside of the warranty period, Adirondack Networks shall charge a nominal fee for evaluation and repair of the defective part. Any replacement or additional parts needed for repair shall be billed to the customer. Customers will be given a quote on repair costs prior to a repair being completed.

GET AN MAINTENANCE QUOTE

Sell us your IT Equipment

We Buy Used Computer & Networking Hardware

If your company has IT equipment that is no longer needed, we are constantly buying new, used, decommissioned or off- lease equipment. Contact Adirondack Networks for a competitive buy-out offer or trade-in allowance and let us help you recover your technology assets and get a return on your original investment.

GET A BUY-OUT QUOTE

About us

Adirondack Networks is a leading provider of new, refurbished and used Oracle SPARC T8-4 Server hardware. We specialize in Oracle SPARC Servers and many other computer server and networking hardware products. Adirondack Networks delivers the best technology and networking products at the best prices. Through our global network of partners, we are able to deliver hardware like the Oracle SPARC T8-4 Server to our customers more efficiently and more cost effectively than mainline distribution. If you are looking to get the job done ahead of schedule and under budget, you are looking for us. Find Oracle T8-4 hardware, components and upgrades at the lowest prices. Adirondack Networks continues to provide hard-to-find discontinued or end-of-life computer servers, networking equipment and replacement parts and can save your company up to 85% off list price.

Contact us if you have questions or need more information on Part#: Oracle T8-4

Adirondack Networks also offers extended warranties on the Oracle SPARC T8-4 Server and other Oracle SPARC Servers. Contact us for options and pricing.

We can save you 50% or more
on your current maintenance contract costs!

or
Contact us

For a Limited Time
 GET 3 MONTHS FREE!

REQUEST QUOTE or CALLBACK
Oracle SPARC Servers: Oracle SPARC T8-4 Server
