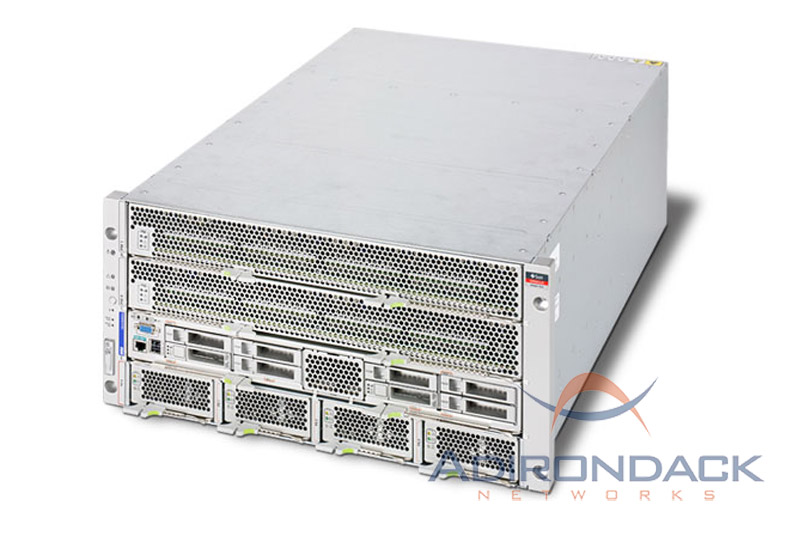

Oracle Sun SPARC T4-4 Server
The Sun SPARC T4-4 server is a highly performing database and enterprise workload server and it is the most powerful server in the T-Series product family.
Manufacturer Oracle Sun Part Number(s):
IN STOCK; READY TO MOVE
Adirondack Networks offers complete configurations as well as individual parts and upgrades for this system.
Contact us for the lowest pricing on new or used Oracle Sun SPARC T4-4 Servers, options or parts.
About the Oracle Sun SPARC T4-4 Server
Product Overview
The SPARC T4-4 running Oracle Solaris is a versatile, high performance, highly scalable, two or four-socket server based on the SPARC T4 processor and optimized for a wide range of enterprise workloads. Powered by the new SPARC T4 processor it delivers unsurpassed single and multi-thread throughput performance and boasts an unmatched combination of speed, security, and availability in a compact 5 RU design. It is an optimal server platform for demanding enterprise applications, server and application consolidation and Oracle database applications, requiring high reliability, availability and security and high singlethread performance. SPARC T4-4 server nodes are also the building blocks for fault tolerant Oracle SPARC SuperCluster servers' engineered systems for deploying a wide array of business critical and performance sensitive workloads on Oracle Solaris.
| Feature | Benefit |
|---|---|
| 2 or 4 sockets each with an 8-core, 3.0 GHz SPARC T4 processor with dedicated 128K L2 cache per core and 4 MB shared L3 cache. The SPARC T4 processor automatically switches to single-thread mode when only a single thread is active, dedicating all resources to that thread's execution. |
5x improvement in single thread and 7x increase in floating point performance delivers the horsepower demanded by enterprise applications and enables rapid batch processing while maintaining high throughput performance |
| System maximum of 2 TB with 32 GB DIMMs, 4 GB and 8 GB, 16 GB and 32 GB DIMMs are supported |
Higher performance for memory intensive applications |
| Built-in, no-cost, low overhead virtualization with Oracle VM Server for SPARC supporting up to 128 virtual machines and thousands of Oracle Solaris Zones on a single server |
Provides an ideal mission-critical consolidation platform that speeds consolidation efforts, reduces virtualization overhead, increases system utilization and reduces data center space and energy requirements |
| Integrated on-chip cryptographic acceleration with support for 16 industry standard security ciphers |
Secure computing at wire speed without performance penalties or additional costs |
| Four hot swappable redundant (2+2) power supplies and up to 16 hot swappable PCI Express Module slots |
Keeps systems up and running around the clock by minimizing maintenance down time, while delivering massive I/O performance |
| Oracle Solaris is pre-installed on every server |
The number one enterprise operating system for data centers, developers and service providers delivers the software scalability, manageability, virtualization, and RAS capabilities required for mission-critical deployments |
| Oracle Solaris' predictive self healing |
Maximizes uptime by preventing faults before they occur and brings systems back up quickly to ensure high service levels. Built for mission-critical applications. |
| Oracle Enterprise Manager Ops Center for comprehensive systems management |
Dramatically improves the efficiency of IT operations with its integrated lifecycle management and built-in automation |
| Oracle Integrated Lights Out Management (ILOM) |
Reduces operating and administrative costs |
Component List
| BACKPLANE/CENTERPLANE | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| n/a | 541-4174 [F] | Rear Chassis Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7013581 [F] | Rear Chassis Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7048676 [F] | Rear Chassis Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| BATTERIES | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| n/a | 371-2210 [C] | 3V Lithium Coin Cell Battery | n/a | |
| CPU MODULE | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| 7101695 [S] | 7048833 [F] [S] | 8-Core 3.0GHz Processor Module | 7019789 [F] | |
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7019789 [F] | 8-Core 3.0GHz Processor Module | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7096266 [F] | 8-Core 3.0GHz Processor Module (reworked 7048833) | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7304290 [F] | 8-Core 3.0GHz Processor Module | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7051795 [F] [S] | 8-Core 3.0GHz Processor Module | 7019789 [F] | |
|
|
n/a | ||
|
|
7013838 | ||
| CABLES | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| 7102869 | 7039990 [C] | MPO to MPO High Bandwidth QSFP Optical Cable, 10M | n/a | |
| 7102870 | 7039999 [C] | MPO to MPO High Bandwidth QSFP Optical Cable, 20M | n/a | |
| 7102871 | 7040001 [C] | MPO to MPO High Bandwidth QSFP Optical Cable, 50M | n/a | |
| X2121A-1M-N | 530-4444 [C] | 10Gbps QSFP to QSFP Cable, 1m | n/a | |
| X2121A-2M | 530-4567 [C] | 10Gbps QSFP to QSFP Cable, 2m | n/a | |
| X2121A-3M-N | 530-4445 [C] | 10Gbps QSFP to QSFP Cable, 3m | n/a | |
| X2121A-5M-N | 530-4446 [C] | 10Gbps QSFP to QSFP Cable, 5m | n/a | |
| X2125A-1M-N | 530-4450 [C] | QSFP to 4× SFP+ Splitter Cable, 1m | n/a | |
| X2125A-3M-N | 530-4451 [C] | QSFP to 4× SFP+ Splitter Cable, 3m | n/a | |
| X2125A-5M-N | 530-4452 [C] | QSFP to 4× SFP+ Splitter Cable, 5m | n/a | |
| X2127A-10M | 530-4480 [C] | MPO to 4x LC Duplex Splitter Cable, 10m | n/a | |
| X2127A-20M | 530-4481 [C] | MPO to 4x LC Duplex Splitter Cable, 20m | n/a | |
| X2127A-50M | 530-4482 [C] | MPO to 4x LC Duplex Splitter Cable, 50m | n/a | |
| X2130A-1M-N | 530-4441 [C] | 10Gbps SFP+ TwinX Cable, 1m | n/a | |
| X2130A-3M-N | 530-4442 [C] | 10Gbps SFP+ TwinX Cable, 3m | n/a | |
| X2130A-5M-N | 530-4443 [C] | 10Gbps SFP+ TwinX Cable, 5m | n/a | |
| X333A-25-10-ZA-N | 180-2298 [C] | IEC 320 C13 to SANS164-1, 10A/250V, 2.5M, Black | n/a | |
| X2130A-10M-N [S] | 530-4454 [C] | 10Gbps SFP+ TwinX Cable, 10m | n/a | |
| n/a | 530-4397 | Fan Power Harness | n/a | |
| n/a | 530-4398 | SFF8087 to 90° SFF8087 Cable, 355mm | n/a | |
| n/a | 530-4399 | Backplane to System Board Power Cable, 208mm | n/a | |
| n/a | 530-4400 | I/O Board to System Board Cable | n/a | |
| n/a | 530-4401 | VGA Board to System Board Cable | n/a | |
| n/a | 530-4409 | AC Input LED Cable | n/a | |
| n/a | 530-4421 | Front LED Flex Cable Assembly | n/a | |
| n/a | 530-4507 | AC Input Line Filter | n/a | |
| CHASSIS | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| n/a | 541-4175 | L3 Chassis Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 541-4284 | L3 Chassis Assembly | n/a | |
|
|
541-4175 | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7048681 | L4 Chassis Assembly | n/a | |
|
|
541-4175 | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7070250 | L4 Chassis Assembly | n/a | |
|
|
541-4175 | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| COMMUNICATION | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| X4243A [S] | 375-3697 [C] | Dual 40Gbps InfiniBand 4x QDR PCI Express ExpressModule Host Channel Adapter | n/a | |
| DISK BACKPLANE | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| n/a | 541-4257 [F] | 4-Slot Disk Backplane Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| DISKS | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| 7107550 | 7077233 [C] | 400GB Solid State SATA Drive Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| SE6X3K11Z | 542-0287 [C] | 600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks; | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| 7101423 [S] | 7017183 [C] | 100GB Solid State SATA Drive Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| 7101469 [S] | 7017184 [C] | 300GB Solid State SATA Drive Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| SE6X3G12Z [S] | 542-0388 [C] | 300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| ETHERNET | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| X2124A-N | 7326504 [C] | 10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver | 135-1204 [C] | |
| X2129A-N | 530-4449 [C] | 10Gb/Sec Short Wave SFP+ Transceiver | n/a | |
| X5562A-Z | 135-1205 [C] | 10Gb/Sec Long Wave SFP+ Transceiver | n/a | |
| 7100483 [S] | 7070211 [C] | Quad Port GbE PCI Express 2.0 ExpressModule, UTP | 7048479 [C] | |
| 7100486 [S] | 7048478 [C] | Quad Port GbE PCI Express 2.0 ExpressModule, MMF | 7014763 [C] | |
| 7100490 [S] | 7014780 [C] | Dual 10-Gigabit Base-T PCIe 2.0 ExpressModule | n/a | |
| SG-XEMFCOE2-Q-SR [S] | 7053425 [C] | Dual 10-Gigabit Ethernet PCI Express ExpressModule SFP+ FCoE CNA - SR | 375-3684 [C] | |
| SG-XEMFCOE2-Q-TA [S] | 7053426 [C] | Dual 10-Gigabit Ethernet PCI Express ExpressModule FCoE CNA - TA | 375-3685 [C] | |
| X1110A-Z [S] | 7051227 [C] | Dual 10-Gigabit SFP+ Ethernet ExpressModule | 375-3616 [C] | |
| X7283A-Z-N [S] | 541-1206 [C] | x4 PCI Express Dual Gigabit Ethernet MMF ExpressModule | n/a | |
| X7284A-Z-N [S] | 7055026 [C] | x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule | 375-3498 [C] | |
| X7287A-Z-N [S] | 541-2487 [C] | x8 PCI Express Quad Gigabit Ethernet UTP ExpressModule | n/a | |
| n/a | 135-1204 [C] | 10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver | n/a | |
| n/a | 375-3498 [C] | x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule | n/a | |
| n/a | 375-3616 [C] | Dual 10-Gigabit SFP+ Ethernet ExpressModule | n/a | |
| n/a | 375-3684 [C] | Dual 10-Gigabit Ethernet PCI Express ExpressModule SFP+ FCoE CNA - SR | n/a | |
| n/a | 375-3685 [C] | Dual 10-Gigabit Ethernet PCI Express ExpressModule FCoE CNA - TA | n/a | |
| n/a | 7014759 [C] | Quad Port GbE PCI Express 2.0 ExpressModule, UTP | n/a | |
| n/a | 7048479 [C] | Quad Port GbE PCI Express 2.0 ExpressModule, UTP | 7014759 [C] | |
| n/a | 7069995 [C] | Dual 10-Gigabit Base-T PCIe 2.0 ExpressModule | n/a | |
| n/a | 7070206 [C] | Quad Port GbE PCI Express 2.0 ExpressModule, MMF | n/a | |
| FAN | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| n/a | 541-4178 [C] | Fan Module | n/a | |
|
|
n/a | ||
| FIBRE CHANNEL | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| 7101676 | 7023325 [C] | Pair of 16Gbps Short Wave SFP+ | n/a | |
|
|
n/a | ||
| 7101678 | 7023315 [C] | Pair of 10Gbps Short Wave SFP+ | n/a | |
|
|
n/a | ||
| 7101682 | 7023304 3 [C] | Dual 16Gbps Fibre Channel / 10Gbps FCoE HBA Module, QLogic | n/a | |
| 7101686 | 7023059 [C] | Pair of 16Gbps Short Wave SFP+ | n/a | |
|
|
n/a | ||
| 7101688 [S] | 7023057 [C] | Pair of 10Gbps Short Wave SFP+ | n/a | |
|
|
n/a | ||
| 7101690 [S] | 7023043 [C] | Sun Storage Dual 16 Gb Fibre Channel ExpressModule Universal HBA, Emulex | n/a | |
| 7105393 [S] | 7053435 [C] | 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex | n/a | |
| SG-XPCIE2FC-EB4-N [S] | 375-3386 [C] | 4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, Emulex | n/a | |
| SG-XPCIE2FC-QB4-N [S] | 375-3384 [C] | 4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, QLogic | n/a | |
| SG-XPCIEFCGBE-E8-N [S] | 371-4666 4 [C] | 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex | n/a | |
| SG-XPCIEFCGBE-Q8-N [S] | 371-4522 5 [C] | 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic | n/a | |
| 3 See component page for more information regarding SFPs. 4 Two SFPs are included, see component page for more information. 5 Two SFPs are included, see component page for more information. |
| I/O | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| n/a | 541-4259 [F] | Front I/O Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7011458 [C] | 10GbE QSFP Rear I/O (RIO) Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7024018 [C] | 10GbE QSFP Rear I/O (RIO) Assembly | 7011458 [C] | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7056172 [F] | Front I/O Assembly | 541-4259 [F] | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| MEMORY | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| 7104199 | 16GB Memory Expansion (1 × 16GB) Option | |||
| 7042210 [C] | 16GB DDR3L-1600/PC3L-12800 DIMM (runs at 1066 MHz) | n/a | ||
| 7104201 | 32GB Memory Expansion (1 × 32GB) Option | |||
| 7042211 [C] | 32GB DDR3L-1066/DDR3L-1333 DIMM | n/a | ||
| 7101696 [S] | 8GB Memory Expansion (2 × 4GB) Option | |||
| 7014642 [C] | 4GB DDR3L-1333/PC3L-10600 DIMM | n/a | ||
| 7101697 [S] | 16GB Memory Expansion (2 × 8GB) Option | |||
| 7014640 [C] | 8GB DDR3L-1333/PC3L-10600 DIMM | n/a | ||
| 7101698 [S] | 32GB Memory Expansion (2 × 16GB) Option | |||
| 7020577 [C] | 16GB DDR3L-1066/PC3L-10600 DIMM | n/a | ||
| 7104197 [S] | 8GB Memory Expansion (1 × 8GB) Option | |||
| 7042208 [C] | 8GB DDR3L-1600/PC3L-12800 DIMM | n/a | ||
| POWER | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| n/a | 300-2159 [C] | Type A239 1030/2060 Watt AC Input Power Supply | n/a | |
| n/a | 300-2321 [C] | Type A239B 1030/2060 Watt AC Input Power Supply | n/a | |
| n/a | 7048276 [C] | Type A239 2000 Watt AC Input Power Supply | n/a | |
| n/a | 7060587 [C] [A] | Type A239D 1030/2060 Watt AC Input Power Supply | 7048276 [C] | |
| RACK | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| n/a | 350-1662 [C] | Rack Mount Kit | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 350-1694 [C] | Cable Management Arm | n/a | |
| n/a | 7051905 [F] | 22KVA Single-Phase PDU, International | n/a | |
| n/a | 7055203 | Rack Mount Kit | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7078665 [F] | 22KVA Single-Phase PDU, International | 7051905 [F] | |
| SCSI | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| SGX-SAS6-EM-Z [S] | 7047854 [C] | Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule | n/a | |
| n/a | 375-3642 [C] | Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule | n/a | |
| n/a | 375-3643 [C] | 6Gbps SAS-2 RAID Expansion Module (REM) | n/a | |
| n/a | 7047855 [C] | 6Gbps SAS-2 RAID Expansion Module (REM) | 375-3643 [C] | |
| SYSTEM BOARD | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| n/a | 7013691 [F] | Main Module Subassembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7041481 [F] | Main Module Subassembly | 7013691 [F] | |
|
|
n/a | ||
|
|
7021098 | ||
|
|
n/a | ||
| n/a | 7048938 [F] | Main Module Subassembly | 7041481 [F] | |
|
|
n/a | ||
|
|
n/a | ||
| SYSTEM SERVICE PROCESSOR | ||||
|---|---|---|---|---|
| OPTION # | MANUFACTURING PART # |
DESCRIPTION | PREVIOUS PART # |
|
| n/a | 541-4694 [C] | Service Processor Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7054795 [C] | Service Processor Assembly | 541-4694 [C] | |
|
|
n/a | ||
|
|
n/a | ||
SPARC-T4-4 Component List
| Backplane/Centerplane | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| n/a | 541-4174 [F] | Rear Chassis Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7013581 [F] | Rear Chassis Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7048676 [F] | Rear Chassis Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| Batteries | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| n/a | 371-2210 [C] | 3V Lithium Coin Cell Battery | n/a | |
| CPU Module | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| 7101695 [S] | 7048833 [F] [S] | 8-Core 3.0GHz Processor Module | 7019789 [F] | |
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7019789 [F] | 8-Core 3.0GHz Processor Module | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7096266 [F] | 8-Core 3.0GHz Processor Module (reworked 7048833) | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7304290 [F] | 8-Core 3.0GHz Processor Module | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7051795 [F] [S] | 8-Core 3.0GHz Processor Module | 7019789 [F] | |
|
|
n/a | ||
|
|
7013838 | ||
| Cables | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| 7102869 | 7039990 [C] | MPO to MPO High Bandwidth QSFP Optical Cable, 10M | n/a | |
| 7102870 | 7039999 [C] | MPO to MPO High Bandwidth QSFP Optical Cable, 20M | n/a | |
| 7102871 | 7040001 [C] | MPO to MPO High Bandwidth QSFP Optical Cable, 50M | n/a | |
| X2121A-1M-N | 530-4444 [C] | 10Gbps QSFP to QSFP Cable, 1m | n/a | |
| X2121A-2M | 530-4567 [C] | 10Gbps QSFP to QSFP Cable, 2m | n/a | |
| X2121A-3M-N | 530-4445 [C] | 10Gbps QSFP to QSFP Cable, 3m | n/a | |
| X2121A-5M-N | 530-4446 [C] | 10Gbps QSFP to QSFP Cable, 5m | n/a | |
| X2125A-1M-N | 530-4450 [C] | QSFP to 4× SFP+ Splitter Cable, 1m | n/a | |
| X2125A-3M-N | 530-4451 [C] | QSFP to 4× SFP+ Splitter Cable, 3m | n/a | |
| X2125A-5M-N | 530-4452 [C] | QSFP to 4× SFP+ Splitter Cable, 5m | n/a | |
| X2127A-10M | 530-4480 [C] | MPO to 4x LC Duplex Splitter Cable, 10m | n/a | |
| X2127A-20M | 530-4481 [C] | MPO to 4x LC Duplex Splitter Cable, 20m | n/a | |
| X2127A-50M | 530-4482 [C] | MPO to 4x LC Duplex Splitter Cable, 50m | n/a | |
| X2130A-1M-N | 530-4441 [C] | 10Gbps SFP+ TwinX Cable, 1m | n/a | |
| X2130A-3M-N | 530-4442 [C] | 10Gbps SFP+ TwinX Cable, 3m | n/a | |
| X2130A-5M-N | 530-4443 [C] | 10Gbps SFP+ TwinX Cable, 5m | n/a | |
| X333A-25-10-ZA-N | 180-2298 [C] | IEC 320 C13 to SANS164-1, 10A/250V, 2.5M, Black | n/a | |
| X2130A-10M-N [S] | 530-4454 [C] | 10Gbps SFP+ TwinX Cable, 10m | n/a | |
| n/a | 530-4397 | Fan Power Harness | n/a | |
| n/a | 530-4398 | SFF8087 to 90° SFF8087 Cable, 355mm | n/a | |
| n/a | 530-4399 | Backplane to System Board Power Cable, 208mm | n/a | |
| n/a | 530-4400 | I/O Board to System Board Cable | n/a | |
| n/a | 530-4401 | VGA Board to System Board Cable | n/a | |
| n/a | 530-4409 | AC Input LED Cable | n/a | |
| n/a | 530-4421 | Front LED Flex Cable Assembly | n/a | |
| n/a | 530-4507 | AC Input Line Filter | n/a | |
| Chassis | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| n/a | 541-4175 | L3 Chassis Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 541-4284 | L3 Chassis Assembly | n/a | |
|
|
541-4175 | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7048681 | L4 Chassis Assembly | n/a | |
|
|
541-4175 | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7070250 | L4 Chassis Assembly | n/a | |
|
|
541-4175 | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| Communication | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| X4243A [S] | 375-3697 [C] | Dual 40Gbps InfiniBand 4x QDR PCI Express ExpressModule Host Channel Adapter | n/a | |
| Disk Backplane | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| n/a | 541-4257 [F] | 4-Slot Disk Backplane Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| Disks | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| 7107550 | 7077233 [C] | 400GB Solid State SATA Drive Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| SE6X3K11Z | 542-0287 [C] | 600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks; | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| 7101423 [S] | 7017183 [C] | 100GB Solid State SATA Drive Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| 7101469 [S] | 7017184 [C] | 300GB Solid State SATA Drive Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| SE6X3G12Z [S] | 542-0388 [C] | 300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| Ethernet | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| X2124A-N | 7326504 [C] | 10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver | 135-1204 [C] | |
| X2129A-N | 530-4449 [C] | 10Gb/Sec Short Wave SFP+ Transceiver | n/a | |
| X5562A-Z | 135-1205 [C] | 10Gb/Sec Long Wave SFP+ Transceiver | n/a | |
| 7100483 [S] | 7070211 [C] | Quad Port GbE PCI Express 2.0 ExpressModule, UTP | 7048479 [C]
|
|
| 7100486 [S] | 7048478 [C] | Quad Port GbE PCI Express 2.0 ExpressModule, MMF | 7014763 [C] | |
| 7100490 [S] | 7014780 [C] | Dual 10-Gigabit Base-T PCIe 2.0 ExpressModule | n/a | |
| SG-XEMFCOE2-Q-SR [S] | 7053425 [C] | Dual 10-Gigabit Ethernet PCI Express ExpressModule SFP+ FCoE CNA - SR | 375-3684 [C] | |
| SG-XEMFCOE2-Q-TA [S] | 7053426 [C] | Dual 10-Gigabit Ethernet PCI Express ExpressModule FCoE CNA - TA | 375-3685 [C] | |
| X1110A-Z [S] | 7051227 [C] | Dual 10-Gigabit SFP+ Ethernet ExpressModule | 375-3616 [C] | |
| X7283A-Z-N [S] | 541-1206 [C] | x4 PCI Express Dual Gigabit Ethernet MMF ExpressModule | n/a | |
| X7284A-Z-N [S] | 7055026 [C] | x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule | 375-3498 [C] | |
| X7287A-Z-N [S] | 541-2487 [C] | x8 PCI Express Quad Gigabit Ethernet UTP ExpressModule | n/a | |
| n/a | 135-1204 [C] | 10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver | n/a | |
| n/a | 375-3498 [C] | x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule | n/a | |
| n/a | 375-3616 [C] | Dual 10-Gigabit SFP+ Ethernet ExpressModule | n/a | |
| n/a | 375-3684 [C] | Dual 10-Gigabit Ethernet PCI Express ExpressModule SFP+ FCoE CNA - SR | n/a | |
| n/a | 375-3685 [C] | Dual 10-Gigabit Ethernet PCI Express ExpressModule FCoE CNA - TA | n/a | |
| n/a | 7014759 [C] | Quad Port GbE PCI Express 2.0 ExpressModule, UTP | n/a | |
| n/a | 7048479 [C] | Quad Port GbE PCI Express 2.0 ExpressModule, UTP | 7014759 [C] | |
| n/a | 7069995 [C] | Dual 10-Gigabit Base-T PCIe 2.0 ExpressModule | n/a | |
| n/a | 7070206 [C] | Quad Port GbE PCI Express 2.0 ExpressModule, MMF | n/a | |
| Fan | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| n/a | 541-4178 [C] | Fan Module | n/a | |
|
|
n/a | ||
| Fibre Channel | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| 7101676 | 7023325 [C] | Pair of 16Gbps Short Wave SFP+ | n/a | |
|
|
n/a | ||
| 7101678 | 7023315 [C] | Pair of 10Gbps Short Wave SFP+ | n/a | |
|
|
n/a | ||
| 7101682 | 7023304 3 [C] | Dual 16Gbps Fibre Channel / 10Gbps FCoE HBA Module, QLogic | n/a | |
| 7101686 | 7023059 [C] | Pair of 16Gbps Short Wave SFP+ | n/a | |
|
|
n/a | ||
| 7101688 [S] | 7023057 [C] | Pair of 10Gbps Short Wave SFP+ | n/a | |
|
|
n/a | ||
| 7101690 [S] | 7023043 [C] | Sun Storage Dual 16 Gb Fibre Channel ExpressModule Universal HBA, Emulex | n/a | |
| 7105393 [S] | 7053435 [C] | 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex | n/a | |
| SG-XPCIE2FC-EB4-N [S] | 375-3386 [C] | 4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, Emulex | n/a | |
| SG-XPCIE2FC-QB4-N [S] | 375-3384 [C] | 4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, QLogic | n/a | |
| SG-XPCIEFCGBE-E8-N [S] | 371-4666 4 [C] | 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex | n/a | |
| SG-XPCIEFCGBE-Q8-N [S] | 371-4522 5 [C] | 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic | n/a | |
| 3 See component page for more information regarding SFPs. 4 Two SFPs are included, see component page for more information. 5 Two SFPs are included, see component page for more information. |
| I/O | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| n/a | 541-4259 [F] | Front I/O Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7011458 [C] | 10GbE QSFP Rear I/O (RIO) Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7024018 [C] | 10GbE QSFP Rear I/O (RIO) Assembly | 7011458 [C] | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7056172 [F] | Front I/O Assembly | 541-4259 [F] | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| Memory | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| 7104199 | 16GB Memory Expansion (1 × 16GB) Option | |||
| 7042210 [C] | 16GB DDR3L-1600/PC3L-12800 DIMM (runs at 1066 MHz) | n/a | ||
| 7104201 | 32GB Memory Expansion (1 × 32GB) Option | |||
| 7042211 [C] | 32GB DDR3L-1066/DDR3L-1333 DIMM | n/a | ||
| 7101696 [S] | 8GB Memory Expansion (2 × 4GB) Option | |||
| 7014642 [C] | 4GB DDR3L-1333/PC3L-10600 DIMM | n/a | ||
| 7101697 [S] | 16GB Memory Expansion (2 × 8GB) Option | |||
| 7014640 [C] | 8GB DDR3L-1333/PC3L-10600 DIMM | n/a | ||
| 7101698 [S] | 32GB Memory Expansion (2 × 16GB) Option | |||
| 7020577 [C] | 16GB DDR3L-1066/PC3L-10600 DIMM | n/a | ||
| 7104197 [S] | 8GB Memory Expansion (1 × 8GB) Option | |||
| 7042208 [C] | 8GB DDR3L-1600/PC3L-12800 DIMM | n/a | ||
| Power | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| n/a | 300-2159 [C] | Type A239 1030/2060 Watt AC Input Power Supply | n/a | |
| n/a | 300-2321 [C] | Type A239B 1030/2060 Watt AC Input Power Supply | n/a | |
| n/a | 7048276 [C] | Type A239 2000 Watt AC Input Power Supply | n/a | |
| n/a | 7060587 [C] [A] | Type A239D 1030/2060 Watt AC Input Power Supply | 7048276 [C] | |
| Rack | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| n/a | 350-1662 [C] | Rack Mount Kit | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 350-1694 [C] | Cable Management Arm | n/a | |
| n/a | 7051905 [F] | 22KVA Single-Phase PDU, International | n/a | |
| n/a | 7055203 | Rack Mount Kit | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7078665 [F] | 22KVA Single-Phase PDU, International | 7051905 [F] | |
| SCSI | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| SGX-SAS6-EM-Z [S] | 7047854 [C] | Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule | n/a | |
| n/a | 375-3642 [C] | Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule | n/a | |
| n/a | 375-3643 [C] | 6Gbps SAS-2 RAID Expansion Module (REM) | n/a | |
| n/a | 7047855 [C] | 6Gbps SAS-2 RAID Expansion Module (REM) | 375-3643 [C] | |
| System Board | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| n/a | 7013691 [F] | Main Module Subassembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7041481 [F] | Main Module Subassembly | 7013691 [F] | |
|
|
n/a | ||
|
|
7021098 | ||
|
|
n/a | ||
| n/a | 7048938 [F] | Main Module Subassembly | 7041481 [F]
|
|
|
|
n/a | ||
|
|
n/a | ||
| System Service Processor | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| n/a | 541-4694 [C] | Service Processor Assembly | n/a | |
|
|
n/a | ||
|
|
n/a | ||
| n/a | 7054795 [C] | Service Processor Assembly | 541-4694 [C] | |
|
|
n/a | ||
|
|
n/a | ||
Adirondack Networks Hardware Warranty:
Depot warranty includes telephone support and defective part replacement. Warranty period is 30 days from date of sale on computer components, configured refurbished workstations and servers. Telephone support and RMA department assistance is available between the hours of 9:00 a.m. and 5:00 p.m. (Eastern Standard Time), Monday through Friday, excluding holidays. Warranty is void on items termed "as is" basis.
Extended Hardware Maintenance Warranty:
The extended warranty period must be purchased in 12-month increments. An extended warranty is available and may be purchased at the time of sale, during, or at the end of an existing warranty time period.
Warranty Repair:
If a component part or system becomes defective outside of the warranty period, Adirondack Networks shall charge a nominal fee for evaluation and repair of the defective part. Any replacement or additional parts needed for repair shall be billed to the customer. Customers will be given a quote on repair costs prior to a repair being completed.
GET AN MAINTENANCE QUOTESell us your IT Equipment
We Buy Used Computer & Networking Hardware
If your company has IT equipment that is no longer needed, we are constantly buying new, used, decommissioned or off- lease equipment. Contact Adirondack Networks for a competitive buy-out offer or trade-in allowance and let us help you recover your technology assets and get a return on your original investment.
GET A BUY-OUT QUOTEAbout us
Adirondack Networks is a leading provider of new, refurbished and used Oracle Sun SPARC T4-4 Server hardware. We specialize in Legacy Sun Servers and many other computer server and networking hardware products. Adirondack Networks delivers the best technology and networking products at the best prices. Through our global network of partners, we are able to deliver hardware like the Oracle Sun SPARC T4-4 Server to our customers more efficiently and more cost effectively than mainline distribution. If you are looking to get the job done ahead of schedule and under budget, you are looking for us. Find hardware, components and upgrades at the lowest prices. Adirondack Networks continues to provide hard-to-find discontinued or end-of-life computer servers, networking equipment and replacement parts and can save your company up to 85% off list price.
Contact us if you have questions or need more information on Part#:
Adirondack Networks also offers extended warranties on the Oracle Sun SPARC T4-4 Server and other Legacy Sun Servers. Contact us for options and pricing.
