Oracle Sun SPARC T5-8 Server

Extreme Performance and Scalability in a Compact High-End Server. Oracle's SPARC T5-8 server is the world's fastest single server for Oracle Database.
Oracle SPARC T5-8 ServerOracle SPARC T5-8 Server
Manufacturer Oracle Sun
Part Number(s): T5-8

IN STOCK > VIEW INVENTORY


Adirondack Networks offers complete configurations as well as individual parts and upgrades for this system. Contact us for a customized quote.

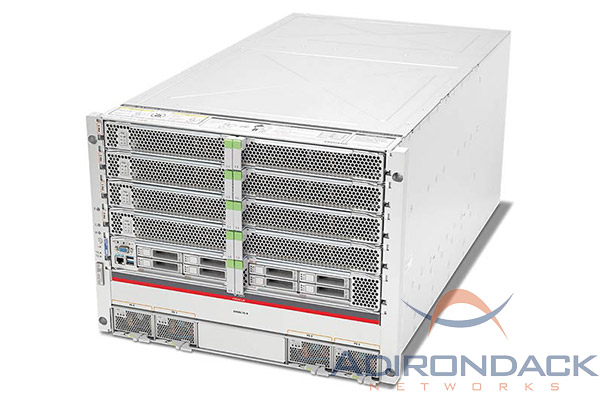

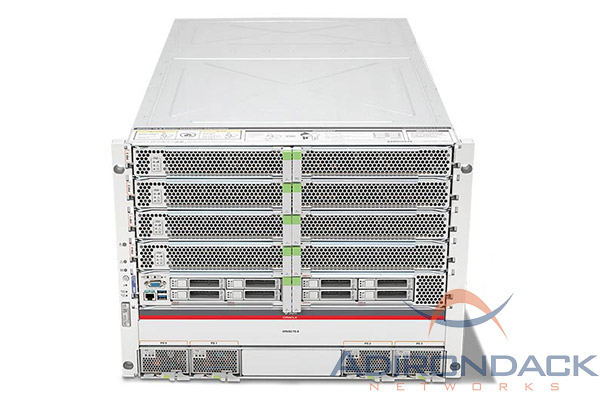

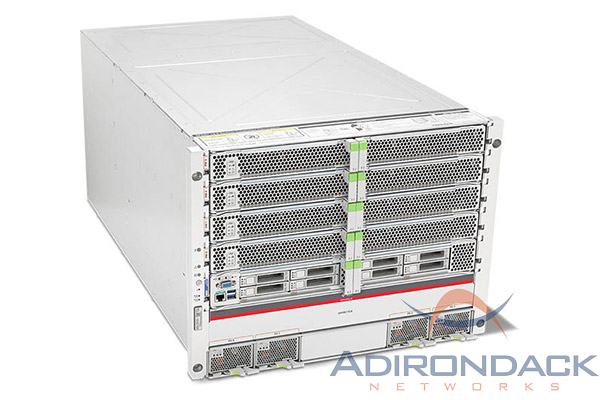

Oracle SPARC T5-8 Server Top View Oracle SPARC T5-8 Server Side View

SPARC-T5-8 Component List

Batteries
Option # Part # Description
n/a 371-2210  3V Lithium Coin Cell Battery
CPU Module
Option # Part # Description
7104195 7303729  16-Core 3.6GHz Processor Module Assembly
  • 7053327
  • Heatsink Kit
    • 7011832
    • Bolster Plate
    • 7014579
    • Spring Screw
    • 7022792
    • Heatsink
  • 7303728
  • Processor Module
  • 7306299
  • 16-Core 3.6GHz T5 CPU Mezzanine
n/a 7049988  Processor Module Filler Panel
n/a 7300806  16-Core 3.6GHz Processor Module Assembly (reworked 7056873)
  • 7053327
  • Heatsink Kit
    • 7011832
    • Bolster Plate
    • 7014579
    • Spring Screw
    • 7022792
    • Heatsink
  • 7056859
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7061554
  • Processor Module
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
n/a 7340495  16-Core 3.6GHz Processor Module Assembly (reworked 7300806)
  • 7053327
  • Heatsink Kit
    • 7011832
    • Bolster Plate
    • 7014579
    • Spring Screw
    • 7022792
    • Heatsink
  • 7056859
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7061554
  • Processor Module
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
n/a 7056873   16-Core 3.6GHz Processor Module Assembly
  • 7053327
  • Heatsink Kit
    • 7011832
    • Bolster Plate
    • 7014579
    • Spring Screw
    • 7022792
    • Heatsink
  • 7056859
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7061554
  • Processor Module
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
Cables
Option # Part # Description
X2121A-1M-N 530-4444  10Gbps QSFP to QSFP Cable, 1m
X2121A-3M-N 530-4445  10Gbps QSFP to QSFP Cable, 3m
X2121A-5M-N 530-4446  10Gbps QSFP to QSFP Cable, 5m
X2130A-1M-N 530-4441  10Gbps SFP+ TwinX Cable, 1m
X2130A-3M-N 530-4442  10Gbps SFP+ TwinX Cable, 3m
X2130A-5M-N 530-4443  10Gbps SFP+ TwinX Cable, 5m
n/a 530-4399 Backplane to System Board Power Cable, 208mm
Chassis
Option # Part # Description
n/a 7060061 T5-8 L3 Chassis Assembly
  • 7039012
  • Front LED Assembly
    • 7026425
    • LED Board
    • 7039033
    • Flex Cable
    • 7045102
    • Jumper Cable
n/a 7063719  T5-8 Rear Chassis Assembly
  • 7025951
  • AC Ground Wire
  • 7025969
  • 20A AC Input Line Filter
  • 7049970
  • Rear Chassis
  • 7063720
  • Midplane Assembly
    • 7024730
    • Fan Power Cable
    • 7024733
    • Upper Fan Board to Midplane Cable
    • 7024734
    • Lower Fan Board to Midplane Cable
    • 7038870
    • PCI Express ExpressModule Backplane
    • 7038873
    • Midplane
    • 7047329
    • Fan Board
    • 7066366
    • Internal AC Power Cable
    • 7067677
    • Bus Bar
n/a 7077596  T5-8 Rear Chassis Assembly
  • 7025951
  • AC Ground Wire
  • 7025969
  • 20A AC Input Line Filter
  • 7049970
  • Rear Chassis
  • 7077594
  • Midplane Assembly
    • 7024730
    • Fan Power Cable
    • 7024733
    • Upper Fan Board to Midplane Cable
    • 7024734
    • Lower Fan Board to Midplane Cable
    • 7038870
    • PCI Express ExpressModule Backplane
    • 7047329
    • Fan Board
    • 7066366
    • Internal AC Power Cable
    • 7067677
    • Bus Bar
    • 7077514
    • Midplane
Communication
Option # Part # Description
7104074 7092757  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
X4242A 375-3696  Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
7092767  Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
X6000A-N  375-3424  PCI Express Sun Crypto Accelerator 6000
n/a 7046442  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
Disk Backplane
Option # Part # Description
n/a 7064535  Storage Backplane Assembly
  • 530-4399
  • Backplane to System Board Power Cable, 208mm
  • 7024275
  • Disk Backplane to System Board Signal Cable
  • 7064532
  • Disk Backplane
Disks
Option # Part # Description
7105212 7064133  300GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
  • 7066794
  • Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7105214 7064135  600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
  • 7045228
  • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
  • 7066795
  • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7107550 7077233  400GB Solid State SATA Drive Assembly
  • 7076379
  • 400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400]
  • 541-2123
  • Marlin 2.5" Bracket
7101423  7017183  100GB Solid State SATA Drive Assembly
  • 7017177
  • Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB - 2.5" Solid State - SATA Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7101469  7017184  300GB Solid State SATA Drive Assembly
  • 7017181
  • Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk)
  • 541-2123
  • Marlin 2.5" Bracket
Ethernet
Option # Part # Description
7100477 7070195  Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7100481 7070202  Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
7100488 7070006  Dual 10-Gigabit Base-T PCI Express Gen2
X1109A-Z 7051223  Dual 10-Gigabit PCI Express Ethernet SFP+ LP
X2124A-N 7326504  10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
X2129A-N 530-4449 10Gb/Sec Short Wave SFP+ Transceiver
X5562A-Z 135-1205 10Gb/Sec Long Wave SFP+ Transceiver
7105381  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7105382  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a 135-1204 10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a 7014747  Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
n/a 7014776  Dual 10-Gigabit Base-T PCI Express Gen2
n/a 7048474  Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
Fan
Option # Part # Description
n/a 7024216  Fan Module
Fibre Channel
Option # Part # Description
7101674 7023303  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
7101676 7023325  Pair of 16Gbps Short Wave SFP+
  • 7023324
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101678 7023315  Pair of 10Gbps Short Wave SFP+
  • 7023316
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101684 7023036  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
7101686 7023059  Pair of 16Gbps Short Wave SFP+
  • 7023053
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
7101688  7023057  Pair of 10Gbps Short Wave SFP+
  • 7023046
  • 10Gb/Sec Short Wave SFP+ Transceiver, Emulex
7106958  7076907  8Gigabit/Sec PCI Express Dual FC Host Adapter, Qlogic
SG-XPCIE2FC-EM8-N 7053434  8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
SG-XPCIE2FC-QF8-N 5 371-4325 8Gigabit/Sec PCI Express Dual FC Host Adapter
SG-XPCIE2FC-QF8-Z 7 371-4325 8Gigabit/Sec PCI Express Dual FC Host Adapter
I/O
Option # Part # Description
7107171 7068503 PCI Express Carrier Extension Assembly
  • 7056605
  • PCI Express Carrier Extension
n/a 7045172  Front I/O Assembly
  • 7018190
  • I/O Board
  • 7020653
  • VGA Board
  • 7024616
  • Front I/O Cable
n/a 7062052  Rear I/O Assembly
  • 7059942
  • Rear I/O Board
  • 7062053
  • Rear I/O Panel
n/a 7069814  PCI Express Carrier Assembly
  • 7068553
  • PCI Express Carrier Board
  • 7069815
  • PCI Express Carrier Enclosure
    • 351-0009
    • PCI Express Filler Panel, Low Profile
n/a 7078249  Rear I/O Assembly
  • 7062053
  • Rear I/O Panel
  • 7078248
  • Rear I/O Board
n/a 7086746  PCI Express Carrier Assembly
  • 7068553
  • PCI Express Carrier Board
  • 7086745
  • PCI Express Carrier Enclosure
    • 351-0009
    • PCI Express Filler Panel, Low Profile
n/a 7089095  PCI Express Carrier Enclosure
  • 351-0009
  • PCI Express Filler Panel, Low Profile
  • 7068608
  • PCI Express Carrier Board
  • 7084357
  • PCI Express Carrier Board
  • 7091851
  • PCI Express Carrier Enclosure
n/a 7314411  PCI Express Carrier Assembly
  • 7068608
  • PCI Express Carrier Board
  • 7084357
  • PCI Express Carrier Board
  • 7090454
  • PCI Express Carrier Enclosure
  • 7091851
  • PCI Express Carrier Enclosure
  • 7314409
  • PCI Express Filler Panel, Low Profile
  • 7314410
  • PCI Express Carrier Enclosure
n/a 7315331  PCI Filler Panel Kit, 16 Low Profile Filler Panels [SKU]
  • 7314409
  • PCI Express Filler Panel, Low Profile
Memory
Option # Part # Description
7104199 16GB Memory Expansion (1 × 16GB) Option
7042210  16GB DDR3L-1600/PC3L-12800 DIMM (runs at 1066 MHz)
7104201 32GB Memory Expansion (1 × 32GB) Option
7042211  32GB DDR3L-1066/DDR3L-1333 DIMM
Power
Option # Part # Description
n/a 7068817  A261 3000 Watt AC Input Power Supply
n/a 7081596  A261 3000 Watt AC Input Power Supply
n/a 7302922  A261 3000 Watt AC Input Power Supply
Rack
Option # Part # Description
n/a 7041990  Cable Management Assembly
n/a 7069640  Mounting Rail Kit
n/a 7069793  Cable Management Assembly
  • 7063313
  • Cable Management Adapter Bracket
  • 7068001
  • Cable Management Assembly
SCSI
Option # Part # Description
7105387 8-Port 6Gbps SAS-2 PCI Express HBA
7047853  8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
7107092 7069200  800GB PCI Express Flash Accelerator F80 SAS HBA
7104482  7070787  Flash Accelerator F40 400GB Solid State Memory
n/a 7026993  Flash Accelerator F40 400GB Solid State Memory
n/a 7077047 PCIe hot plug carrier extension
System Board
Option # Part # Description
n/a 7305706  Motherboard Assembly
  • 7070930
  • Enclosure
  • 7305707
  • Motherboard
    • 371-2210
    • 3V Lithium Coin Cell Battery
    • 525-2146
    • SSCC NVRAM
n/a 7070931   Motherboard Assembly
  • 7070928
  • Motherboard
    • 371-2210
    • 3V Lithium Coin Cell Battery
    • 525-2146
    • SSCC NVRAM
  • 7070930
  • Enclosure
  • 7076168
  • Motherboard
    • 371-2210
    • 3V Lithium Coin Cell Battery
    • 525-2146
    • SSCC NVRAM
System Service Processor
Option # Part # Description
n/a 7066335  Service Processor Assembly
  • 350-1614
  • Service Processor Cover
  • 7066333
  • Service Processor

About the Oracle Sun SPARC T5-8 Server

SPARC T5-8 Server

The SPARC T5-8 server is an 8U rack system offering extreme performance, unmatched scalability, and outstanding RAS features. In combination with Oracle Solaris, this high-end server accelerates a broad range of Oracle and non-Oracle applications including database and middleware software. Oracle's unique advantage of engineering the hardware and software to work together delivers best-in-class products that are optimized to solve unique business challenges with world-record performance, unmatched value and investment protection.

Utilizing modular design architecture, the SPARC T5-8 server is powered by either four or eight SPARC T5 CPUs, Oracle's most powerful SPARC processor ever, delivering exceptional multi-thread and single-thread performance. SPARC T5 CPUs are directly attached to each other in a glueless 1-hop configuration that results in extremely low latency and increased application acceleration. With 16 cores and 16 memory slots per SPARC T5 processor, the SPARC T5-8 server provides extreme compute density with up to 128 cores and 4 TB of system memory, all within a simple and compact rack enclosure. The advanced SPARC T5 processor includes integrated on-chip cryptographic support that provides wire speed encryption capabilities for secure data center operation - without paying a performance penalty or having to acquire additional hardware.

The SPARC T5-8 server offers massive I/O, making it an ideal platform for virtualization and other I/O-intensive applications. Up to 16 hot-plug low-profile PCIe 3.0 slots provide I/O flexibility and choice in network connections, such as Fibre Channel, InfiniBand, or Ethernet. This extensibility virtually eliminates downtime typically needed to perform I/O upgrades and maintenance. Four integrated 10 Gigabit Ethernet ports provide additional I/O bandwidth.

The SPARC T5-8 server provides enterprise-class RAS features including redundant, hot-plug fans, disks, and power supplies. Additionally, all 16 PCIe slots can accommodate hot-plug PCIe cards utilizing a PCIe hot-plug carrier. All these features contribute to increased uptime and ease of system serviceability in the case of hardware failure.



Component List

BATTERIES
OPTION # PART # DESCRIPTION
n/a 371-2210  3V Lithium Coin Cell Battery
CPU MODULE
OPTION # PART # DESCRIPTION
7104195 7303729  16-Core 3.6GHz Processor Module Assembly
  • 7053327
  • Heatsink Kit
    • 7011832
    • Bolster Plate
    • 7014579
    • Spring Screw
    • 7022792
    • Heatsink
  • 7303728
  • Processor Module
  • 7306299
  • 16-Core 3.6GHz T5 CPU Mezzanine
n/a 7049988  Processor Module Filler Panel
n/a 7300806  16-Core 3.6GHz Processor Module Assembly (reworked 7056873)
  • 7053327
  • Heatsink Kit
    • 7011832
    • Bolster Plate
    • 7014579
    • Spring Screw
    • 7022792
    • Heatsink
  • 7056859
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7061554
  • Processor Module
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
n/a 7340495  16-Core 3.6GHz Processor Module Assembly (reworked 7300806)
  • 7053327
  • Heatsink Kit
    • 7011832
    • Bolster Plate
    • 7014579
    • Spring Screw
    • 7022792
    • Heatsink
  • 7056859
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7061554
  • Processor Module
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
n/a 7056873   16-Core 3.6GHz Processor Module Assembly
  • 7053327
  • Heatsink Kit
    • 7011832
    • Bolster Plate
    • 7014579
    • Spring Screw
    • 7022792
    • Heatsink
  • 7056859
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7061554
  • Processor Module
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine

CABLES
OPTION # PART # DESCRIPTION
X2121A-1M-N 530-4444  10Gbps QSFP to QSFP Cable, 1m
X2121A-3M-N 530-4445  10Gbps QSFP to QSFP Cable, 3m
X2121A-5M-N 530-4446  10Gbps QSFP to QSFP Cable, 5m
X2130A-1M-N 530-4441  10Gbps SFP+ TwinX Cable, 1m
X2130A-3M-N 530-4442  10Gbps SFP+ TwinX Cable, 3m
X2130A-5M-N 530-4443  10Gbps SFP+ TwinX Cable, 5m
n/a 530-4399 Backplane to System Board Power Cable, 208mm
CHASSIS
OPTION # PART # DESCRIPTION
n/a 7060061 T5-8 L3 Chassis Assembly
  • 7039012
  • Front LED Assembly
    • 7026425
    • LED Board
    • 7039033
    • Flex Cable
    • 7045102
    • Jumper Cable
n/a 7063719  T5-8 Rear Chassis Assembly
  • 7025951
  • AC Ground Wire
  • 7025969
  • 20A AC Input Line Filter
  • 7049970
  • Rear Chassis
  • 7063720
  • Midplane Assembly
    • 7024730
    • Fan Power Cable
    • 7024733
    • Upper Fan Board to Midplane Cable
    • 7024734
    • Lower Fan Board to Midplane Cable
    • 7038870
    • PCI Express ExpressModule Backplane
    • 7038873
    • Midplane
    • 7047329
    • Fan Board
    • 7066366
    • Internal AC Power Cable
    • 7067677
    • Bus Bar
n/a 7077596  T5-8 Rear Chassis Assembly
  • 7025951
  • AC Ground Wire
  • 7025969
  • 20A AC Input Line Filter
  • 7049970
  • Rear Chassis
  • 7077594
  • Midplane Assembly
    • 7024730
    • Fan Power Cable
    • 7024733
    • Upper Fan Board to Midplane Cable
    • 7024734
    • Lower Fan Board to Midplane Cable
    • 7038870
    • PCI Express ExpressModule Backplane
    • 7047329
    • Fan Board
    • 7066366
    • Internal AC Power Cable
    • 7067677
    • Bus Bar
    • 7077514
    • Midplane
COMMUNICATION
OPTION # PART # DESCRIPTION
7104074 7092757  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
X4242A 375-3696  Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
7092767  Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
X6000A-N  375-3424  PCI Express Sun Crypto Accelerator 6000
n/a 7046442  Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
DISK BACKPLANE
OPTION # PART # DESCRIPTION
n/a 7064535  Storage Backplane Assembly
  • 530-4399
  • Backplane to System Board Power Cable, 208mm
  • 7024275
  • Disk Backplane to System Board Signal Cable
  • 7064532
  • Disk Backplane
DISKS
OPTION # PART # DESCRIPTION
7105212 7064133  300GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
  • 7066794
  • Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7105214 7064135  600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
  • 7045228
  • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
  • 7066795
  • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7107550 7077233  400GB Solid State SATA Drive Assembly
  • 7076379
  • 400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400]
  • 541-2123
  • Marlin 2.5" Bracket
7101423  7017183  100GB Solid State SATA Drive Assembly
  • 7017177
  • Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB - 2.5" Solid State - SATA Disk)
  • 541-2123
  • Marlin 2.5" Bracket
7101469  7017184  300GB Solid State SATA Drive Assembly
  • 7017181
  • Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk)
  • 541-2123
  • Marlin 2.5" Bracket
ETHERNET
OPTION # PART # DESCRIPTION
7100477 7070195  Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7100481 7070202  Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
7100488 7070006  Dual 10-Gigabit Base-T PCI Express Gen2
X1109A-Z 7051223  Dual 10-Gigabit PCI Express Ethernet SFP+ LP
X2124A-N 7326504  10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
X2129A-N 530-4449 10Gb/Sec Short Wave SFP+ Transceiver
X5562A-Z 135-1205 10Gb/Sec Long Wave SFP+ Transceiver
7105381  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7105382  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423  Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a 135-1204 10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a 7014747  Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
n/a 7014776  Dual 10-Gigabit Base-T PCI Express Gen2
n/a 7048474  Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP

FAN
OPTION # PART # DESCRIPTION
n/a 7024216  Fan Module
FIBRE CHANNEL
OPTION # PART # DESCRIPTION
7101674 7023303  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
7101676 7023325  Pair of 16Gbps Short Wave SFP+
  • 7023324
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101678 7023315  Pair of 10Gbps Short Wave SFP+
  • 7023316
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
7101684 7023036  Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
7101686 7023059  Pair of 16Gbps Short Wave SFP+
  • 7023053
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
7101688  7023057  Pair of 10Gbps Short Wave SFP+
  • 7023046
  • 10Gb/Sec Short Wave SFP+ Transceiver, Emulex
7106958  7076907  8Gigabit/Sec PCI Express Dual FC Host Adapter, Qlogic
SG-XPCIE2FC-EM8-N 7053434  8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
SG-XPCIE2FC-QF8-N 5 371-4325 8Gigabit/Sec PCI Express Dual FC Host Adapter
SG-XPCIE2FC-QF8-Z 7 371-4325 8Gigabit/Sec PCI Express Dual FC Host Adapter
I/O
OPTION # PART # DESCRIPTION
7107171 7068503 PCI Express Carrier Extension Assembly
  • 7056605
  • PCI Express Carrier Extension
n/a 7045172  Front I/O Assembly
  • 7018190
  • I/O Board
  • 7020653
  • VGA Board
  • 7024616
  • Front I/O Cable
n/a 7062052  Rear I/O Assembly
  • 7059942
  • Rear I/O Board
  • 7062053
  • Rear I/O Panel
n/a 7069814  PCI Express Carrier Assembly
  • 7068553
  • PCI Express Carrier Board
  • 7069815
  • PCI Express Carrier Enclosure
    • 351-0009
    • PCI Express Filler Panel, Low Profile
n/a 7078249  Rear I/O Assembly
  • 7062053
  • Rear I/O Panel
  • 7078248
  • Rear I/O Board
n/a 7086746  PCI Express Carrier Assembly
  • 7068553
  • PCI Express Carrier Board
  • 7086745
  • PCI Express Carrier Enclosure
    • 351-0009
    • PCI Express Filler Panel, Low Profile
n/a 7089095  PCI Express Carrier Enclosure
  • 351-0009
  • PCI Express Filler Panel, Low Profile
  • 7068608
  • PCI Express Carrier Board
  • 7084357
  • PCI Express Carrier Board
  • 7091851
  • PCI Express Carrier Enclosure
n/a 7314411  PCI Express Carrier Assembly
  • 7068608
  • PCI Express Carrier Board
  • 7084357
  • PCI Express Carrier Board
  • 7090454
  • PCI Express Carrier Enclosure
  • 7091851
  • PCI Express Carrier Enclosure
  • 7314409
  • PCI Express Filler Panel, Low Profile
  • 7314410
  • PCI Express Carrier Enclosure
n/a 7315331  PCI Filler Panel Kit, 16 Low Profile Filler Panels [SKU]
  • 7314409
  • PCI Express Filler Panel, Low Profile
MEMORY
OPTION # PART # DESCRIPTION
7104199 16GB Memory Expansion (1 × 16GB) Option
7042210  16GB DDR3L-1600/PC3L-12800 DIMM (runs at 1066 MHz)
7104201 32GB Memory Expansion (1 × 32GB) Option
7042211  32GB DDR3L-1066/DDR3L-1333 DIMM

POWER
OPTION # PART # DESCRIPTION
n/a 7068817  A261 3000 Watt AC Input Power Supply
n/a 7081596  A261 3000 Watt AC Input Power Supply
n/a 7302922  A261 3000 Watt AC Input Power Supply
RACK
OPTION # PART # DESCRIPTION
n/a 7041990  Cable Management Assembly
n/a 7069640  Mounting Rail Kit
n/a 7069793  Cable Management Assembly
  • 7063313
  • Cable Management Adapter Bracket
  • 7068001
  • Cable Management Assembly
SCSI
OPTION # PART # DESCRIPTION
7105387 8-Port 6Gbps SAS-2 PCI Express HBA
7047853  8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
7107092 7069200  800GB PCI Express Flash Accelerator F80 SAS HBA
7104482  7070787  Flash Accelerator F40 400GB Solid State Memory
n/a 7026993  Flash Accelerator F40 400GB Solid State Memory
n/a 7077047 PCIe hot plug carrier extension
SYSTEM BOARD
OPTION # PART # DESCRIPTION
n/a 7305706  Motherboard Assembly
  • 7070930
  • Enclosure
  • 7305707
  • Motherboard
    • 371-2210
    • 3V Lithium Coin Cell Battery
    • 525-2146
    • SSCC NVRAM
n/a 7070931   Motherboard Assembly
  • 7070928
  • Motherboard
    • 371-2210
    • 3V Lithium Coin Cell Battery
    • 525-2146
    • SSCC NVRAM
  • 7070930
  • Enclosure
  • 7076168
  • Motherboard
    • 371-2210
    • 3V Lithium Coin Cell Battery
    • 525-2146
    • SSCC NVRAM
SYSTEM SERVICE PROCESSOR
OPTION # PART # DESCRIPTION
n/a 7066335  Service Processor Assembly
  • 350-1614
  • Service Processor Cover
  • 7066333
  • Service Processor

Adirondack Networks Hardware Warranty:

Depot warranty includes telephone support and defective part replacement. Warranty period is 30 days from date of sale on computer components, configured refurbished workstations and servers. Telephone support and RMA department assistance is available between the hours of 9:00 a.m. and 5:00 p.m. (Eastern Standard Time), Monday through Friday, excluding holidays. Warranty is void on items termed "as is" basis.

Extended Hardware Maintenance Warranty:

The extended warranty period must be purchased in 12-month increments. An extended warranty is available and may be purchased at the time of sale, during, or at the end of an existing warranty time period.

Warranty Repair:

If a component part or system becomes defective outside of the warranty period, Adirondack Networks shall charge a nominal fee for evaluation and repair of the defective part. Any replacement or additional parts needed for repair shall be billed to the customer. Customers will be given a quote on repair costs prior to a repair being completed.

GET AN MAINTENANCE QUOTE

Sell us your IT Equipment

We Buy Used Computer & Networking Hardware

If your company has IT equipment that is no longer needed, we are constantly buying new, used, decommissioned or off- lease equipment. Contact Adirondack Networks for a competitive buy-out offer or trade-in allowance and let us help you recover your technology assets and get a return on your original investment.

GET A BUY-OUT QUOTE

About us

Adirondack Networks is a leading provider of new, refurbished and used Oracle Sun SPARC T5-8 Server hardware. We specialize in Oracle SPARC Servers and many other computer server and networking hardware products. Adirondack Networks delivers the best technology and networking products at the best prices. Through our global network of partners, we are able to deliver hardware like the Oracle Sun SPARC T5-8 Server to our customers more efficiently and more cost effectively than mainline distribution. If you are looking to get the job done ahead of schedule and under budget, you are looking for us. Find T5-8 hardware, components and upgrades at the lowest prices. Adirondack Networks continues to provide hard-to-find discontinued or end-of-life computer servers, networking equipment and replacement parts and can save your company up to 85% off list price.

Contact us if you have questions or need more information on Part#: T5-8

Adirondack Networks also offers extended warranties on the Oracle Sun SPARC T5-8 Server and other Oracle SPARC Servers. Contact us for options and pricing.

We can save you 50% or more
on your current maintenance contract costs!

or
Contact us

For a Limited Time
 GET 3 MONTHS FREE!

REQUEST QUOTE or CALLBACK
Oracle Sun SPARC T5-8 Server | Adirondack Networks Inc
