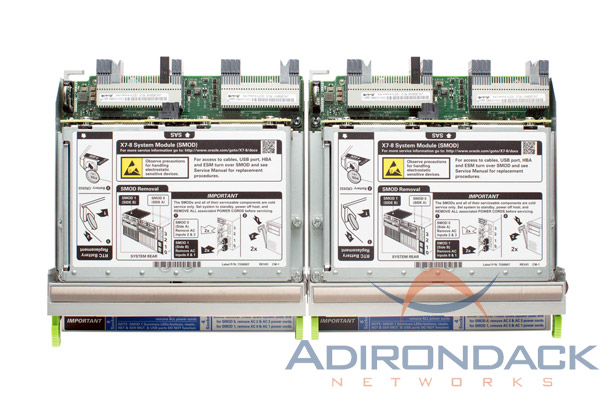

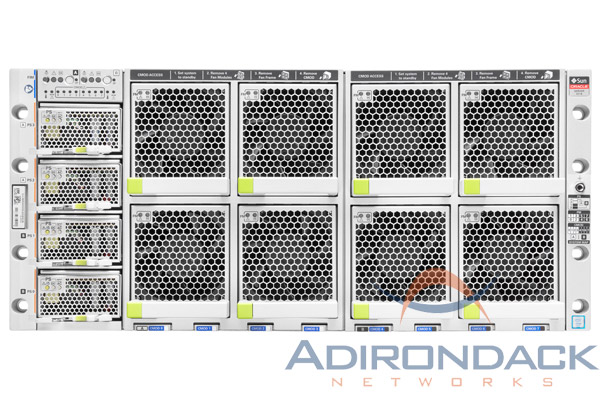

Oracle x86 X7-8 Server
Oracle's most powerful x86 server engineered for in-memory databases and scale-up applications. Available in eight-socket and dual four-socket formats optimized for enterprise workloads requiring extreme I/O bandwidth, memory, and core count.
Manufacturer Oracle Sun
Part Number(s): x86-X7-8
Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.
Part Number(s): x86-X7-8
Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.
About the Oracle x86 X7-8 Server
Processor

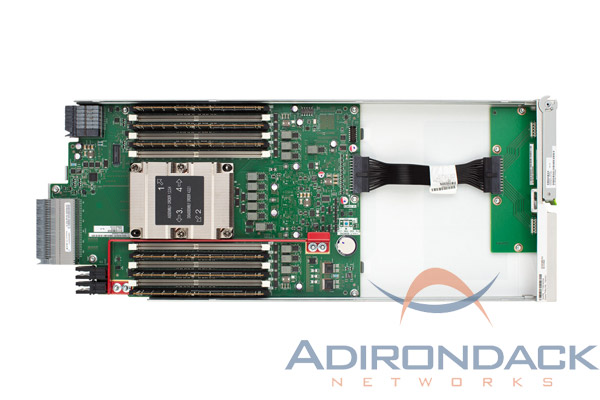

- 4 CPU modules, each with one Intel® Xeon® Platinum 8100 or Gold 6100 series processor
- Up to 24 cores per processor
- Intel Xeon Platinum 8168 processor: 2.7 GHz, 24 cores, 205 watts, XCC, 33 MB L3 cache
- Intel Xeon Platinum 8160 processor: 2.1 GHz, 24 cores, 150 watts, XCC, 33 MB L3 cache
- Intel Xeon Gold 6140 processor: 2.3 GHz, 18 cores, 140 watts, XCC, 24.75 MB L3 cache
- Intel Xeon Gold 6128 processor: 3.4 GHz, 6 cores, 115 watts, XCC, 19.25 MB L3 cache
Memory
- Forty-eight DIMM slots (12 per CPU module) provide up to 3 TB of DDR4 ECC DIMM memory
- RDIMM options: 16 GB at DDR4-2666 and 32 GB at DDR4-2666
- LRDIMM option: 64 GB at DDR4-2666
Standard I/O
- Four 10 GbE onboard Ethernet copper ports
- One 1 GbE onboard Ethernet copper port
- Two USB 3.0 ports (one external, one internal)
- Eight PCIe Gen 3 slots (four 16-lane; four 8-lane)
- Rear-serviceable and hot swappable using dual PCIe card carrier (DPCC)
Internal Storage
- Four 2.5-inch SAS-3 rear-accessible, hot-swappable drive bays
- All bays can be populated with SAS-3 HDDs or SSDs
- One embedded 12 Gb/sec SAS-3 RAID HBA supporting RAID levels 0, 1, 5, 6, 10, 50, and 60 with 2 GB of flash-backed write-back cache
Interfaces
- Dedicated 10/100/1000 M Base-T network management port
- In-band, out-of-band, and sideband network management access via any one of the four main ports on the server or the dedicated port
- RJ-45 serial management port
Operating Systems
- Oracle Solaris
- Oracle Linux
Power
- Rated line voltage: 200–240 VAC (50/60 Hz)
- Rated input current: 23 A (12 A max per cord)
- Four hot-swappable front accessible power supplies (in two sets of 1+1 redundant power supplies) per 4-socket server
Dimensions and Weight
- Height: 219.25 mm (8.63 in.)
- Width: 445 mm (17.5 in.)
- Depth: 833 mm (32.8 in.)
- Weight: 114 kg (250 lb.) maximum
