Oracle x86 X8-8 Server

Oracle's most powerful x86 server engineered for in-memory databases and scale-up applications. Available in eight-socket and dual four-socket formats optimized for enterprise workloads requiring extreme I/O bandwidth, memory, and core count.
Manufacturer Oracle Sun
Part Number(s): x86-X8-8

Adirondack Networks offers complete configurations as well as individual parts and upgrades for this model. For pricing on new or used servers, upgrades or parts, please Contact us.
x86-X8-8-600px-a x86-X8-8-600px-b x86-X8-8-600px-c x86-X8-8-600px-d

About the Oracle x86 X8-8 Server

Processor

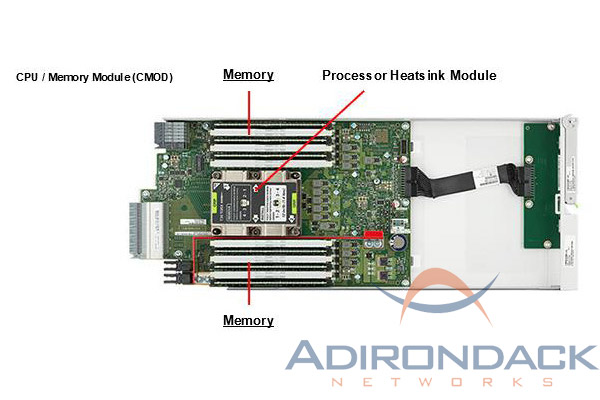

  • 8 CPU modules, each with one Intel® Xeon® Platinum 8268 or 8260 processor
  • Up to 24 cores per processor
  • Intel Xeon Platinum 8268 processor: 2.9 GHz, 24 cores, 205 watts, XCC, 35.75 MB L3 cache
  • Intel Xeo® Platinum 8260 processor: 2.4 GHz, 24 cores, 165 watts, XCC, 35.75 MB L3 cache
Memory
  • Ninety-six DIMM slots (12 per CPU module) provide up to 6 TB of DDR4 ECC DIMM memory
  • RDIMM options: 16 GB at DDR4-2666 and 32 GB at DDR4-2666
  • LRDIMM option: 64 GB at DDR4-2666
Standard I/O
  • Eight 10 GbE onboard Ethernet copper ports
  • Two 1 GbE onboard Ethernet copper ports
  • Four USB 3.0 ports (two external, two internal)
  • Sixteen PCIe Gen 3 slots (eight 16-lane; eight 8-lane)
    • Rear-serviceable and hot swappable using dual PCIe card carrier (DPCC)
Internal Storage
  • Eight 2.5-inch SAS-3 rear-accessible, hot-swappable drive bays
  • All bays can be populated with SAS-3 HDDs or SSDs
  • One embedded 12 Gb/sec SAS-3 RAID HBA supporting RAID levels 0, 1, 5, 6, 10, 50, and 60 with 2 GB of flash-backed write-back cache
Interfaces
  • Dedicated 10/100/1000 M Base-T network management port
  • In-band, out-of-band, and sideband network management access via any one of the four main ports on the server or the dedicated port
  • RJ-45 serial management port
Operating Systems
  • Oracle Solaris
  • Oracle Linux
Power
  • Rated line voltage: 200–240 VAC (50/60 Hz)
  • Rated input current: 23 A (12 A max per cord)
  • Four hot-swappable front accessible power supplies with N+N redundancy
Dimensions and Weight
  • Height: 219.25 mm (8.63 in.)
  • Width: 445 mm (17.5 in.)
  • Depth: 833 mm (32.8 in.)
  • Weight: 114 kg (250 lb.) maximum
